0601063T70, Bosch GLL 3-80 CG, 540nm Green, 3 Line Line laser, Лазерный уровень

1446656
Номер производителя: 0601063T70Производитель: Bosch
Цена за шт.
306288.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

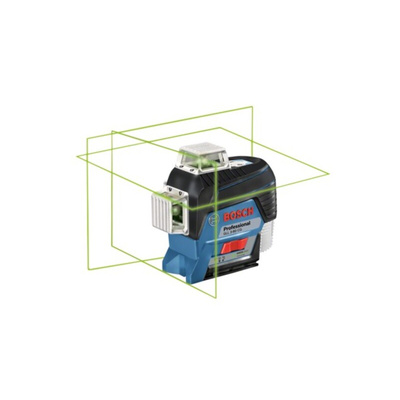

Bosch GLL3-80 CG Multi-Line Laser Level

Introducing the Bosch GLL 3-80 CG Multi-Line Laser Level. This high-quality, professional laser level is the world's first laser tool of its kind to simultaneously project clear 1x horizontal and 2x vertical laser light planes. It is a self-levelling, compact, easy-to-handle and extremely robust device featuring the green laser light that is up to 4 times better visible in daylight then red laser. The GL 3-80 CG can be used indoor and outdoor and meets IP54 standard. The GLL 3-80 CG is very precise thanks to CAL Guard monitoring and remote-control use with the Bluetooth-connected smartphone app which allows you to control the laser without needing to touch or potentially move it.

Bosch GLL 3-80 Multi-Line Laser Levels is available in 3 different options to choose from:
• Bosch GLL 3-80 - 144-6654 (No Bluetooth / Red Laser / 4 x 1.5V Batteries)
• Bosch GLL 3-80 C - 144-6655 (Bluetooth Connectivity / Red Laser / 4 x 1.5V Batteries / CAL Guard)
• Bosch GLL 3-80 CG - 144-6656 (Bluetooth Connectivity / Green Laser / 2Ah Battery / CAL Guard)

Features and Benefits:

• Up to 4x better visibility due to the green laser lines (Bright green laser lines offer up to four times better visibility than red lines)
• Simply Connected feature for contactless controlling without touching and without losing precision

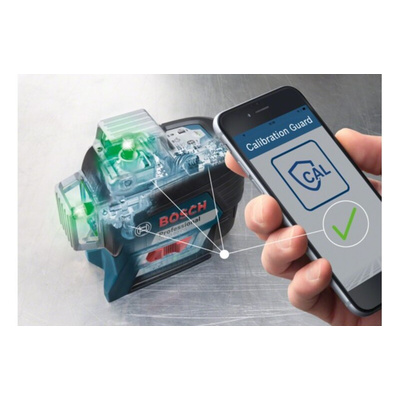

• Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app

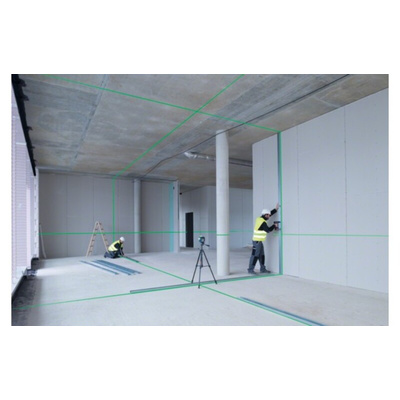

• 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
• Dual Power Source: Can be operated both with 12V LI-ion battery and with standard alkaline batteries
• High visibility of the laser lines with a working range of 30 m (without receiver) or up to 120 m with LR 6 or LR 7 Professional receiver (sold separately)
• Self-levelling (±4° in <4 sec), very precise (± 0.2 mm/m)
• Compact, easy to handle and extremely robust (IP54 rated)
• Pendulum lock ensures safe transport
Supplied with a 2Ah battery

Technical Specification:

• Laser diode: 500 – 540 nm, < 10 mW
• Operating temperature: -10 – 40 °C
• Storage temperature: -20 – 70 °C
• Laser class: 2
• Working range: 30m
• Working range with receiver: 120m
• Working range without receiver: 30m
• Accuracy: ± 0.2 mm/m
• Self-levelling range: ± 4°
• Levelling time: 4 s
• Dust and splash protection: IP 54
• Operating time (max.): 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
• Tripod thread: 1/4", 5/8"
• Colour of laser line: Green
• Projection: 3 x 360° line
• Compatible laser receivers: LR6 / LR7
• Weight: 0.9 kg

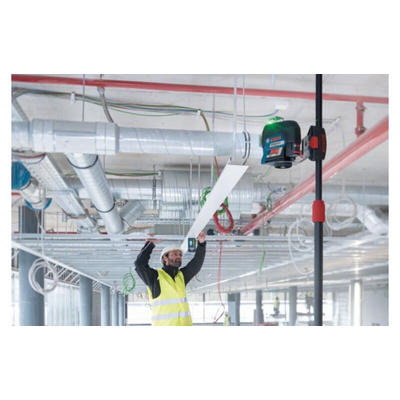

Typical Applications:

Laser Levels can be used for many professional construction jobs and household applications, e.g:

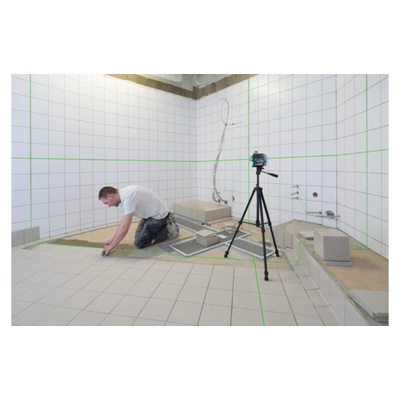

• Tiling
• Wallpapering
• Interior decorating
• Panelling
• Kitchen Installation
• Bathroom Installation
Where-ever precision levelling is required, a digital laser level can save you time and prevent mistakes.

FAQs:

What do I get in the set?
• 1x GLL 3-80 CG Green 3-Plane Line Laser
• 1x BM1 Universal Mount
• 1x GBA 12v 2.0Ah Battery
• 1x GAL 1230 CV Quick Charger
• 1x Laser Target Plate
• 1x Protective Pouch
• 1x L-Boxx Carry Case

Note

Will be delivered with UK plug

Техническая спецификация
pdfContains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
pdf1446656_Data Sheet
pdfManual
Вес:
900гр
Выравнивание уровня:
Да
Высота:
148мм
Длина:
162мм
Длина волны лазера:
540нм
Источник питания:
Батарея
Класс лазера:
Class 2
Количество лазерных линий:
3
Количество лазерных точек:
0
Модель р:
GLL 3-80 CG
Производственная среда:
Indoor
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
-10°C
Размеры:
162 x 84 x 148мм
Самостоятельное выравнивание:
Да
Точность выравнивания:
±0.2мм/м
Цвет лазера:
Зеленый
Ширина:
84мм
