02043.0-00, STEGO Enclosure Heater, 230V ac, 150W Output, 150W Input, +135°C, 220mm x 80mm x 160mm, Обогреватель

Stego Hazardous Area Compact Heaters, CREx 02 Series

Introducing the Compact convection heater of temperature classes T3, T4 and T5 for use in areas with explosion hazard for prevention of formation of condensation and temperature fluctuations. Also benefitting in protection against frost in control and switch cabinets, and in measuring equipment.

Features and Benefits

• For areas with explosion hazard
• Large convection surface
• Clip and screw flange fixing
• Ready-to-use with strain relief
• Maintenance free
• Temperature class T3 (200°C max) 50 W to 250 W
• Temperature class T4 (135°C max) 50 W to 200 W
• Temperature class T5 (100°C max) 50 W to 100 W

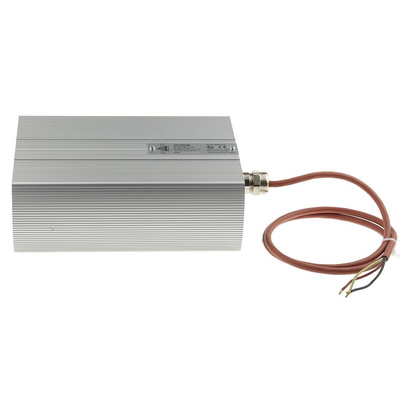

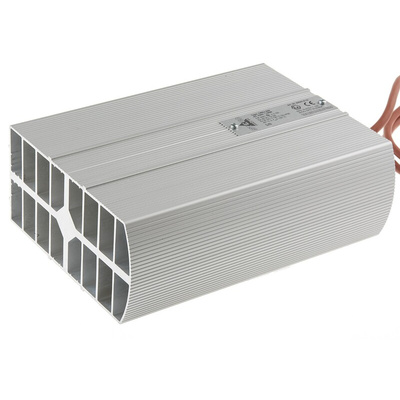

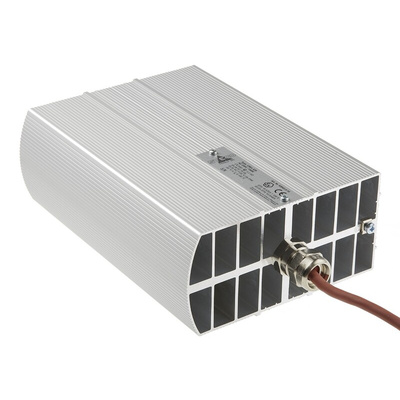

Stego Elektrotechnik Enclosure Heater

The Stego Elektrotechnik is a 150W enclosure heater belongs to CREx 020 series. This compact heater of temperature class T4 for use in areas with explosion hazard for prevention of formation of condensation and temperature fluctuations. It provides protection against frost in control and switch cabinets and in measuring equipment.

Features and Benefits

• Ambient temperature range between -60°C and 50°C
• Clip and screw flange fixing
• Compact in dimension 160 x 80 x 220mm
• For areas with explosion hazard
• Large convection surface
• Maintenance free
• Ready-to-use with strain relief

Applications

• Hazardous area

Certifications

• CE
• EAC approved
• EPS 16 ATEX 1 109 X
• Ex
• IEC
• IECEx
• IP66 rated

CREx 020 T4 Datasheet
