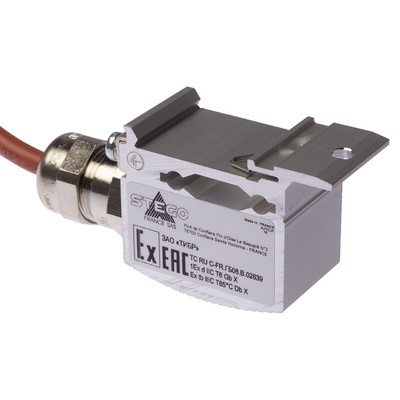

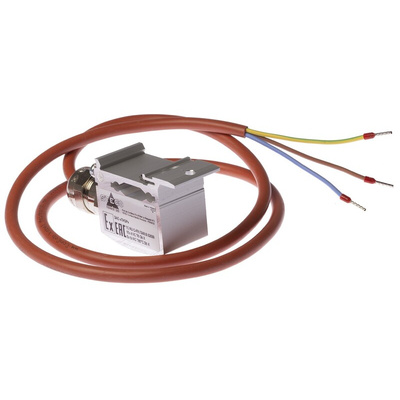

01185.1-00, STEGO REx 011 NC Enclosure Thermostat, 1.5 V dc, 250 V ac, +25 (Maximum) °C, Термостат

Stego Hazardous Area Thermostats, REx 011 Series

This thermostat of temperature class T6 (85 °C max.) is utilised for the regulation of heaters deployed in areas with explosion hazard. The high switching performance allows direct control of a heater. Compact, small mechanical thermostat offering a high response accuracy, small switch temperature difference and a very long service life (switching cycles).

Features and Benefits

• For areas with explosion hazard
• High switching capacity
• Compact Design
• Set temperature
• Ready-to-use with strain relief
• Temperature class T6 (85°C max)

Stego Elektrotechnik Enclosure Thermostat

The Stego Elektrotechnik enclosure thermostat is fixed NC T6 (85°C max) temperature class thermostat. It is utilised for the regulation of heaters deployed in the areas with explosion hazards. High switching performance allows direct control of heater. This is a small mechanical thermostat offering a high response accuracy.

Features and Benefits

• Compact design
• High switching capacity
• Switch temperature is 25°C with tolerance ±3K

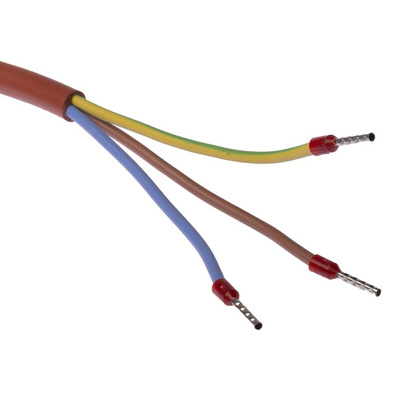

• Ready to use with strain relief
• Service temperature ranges between -60°C and 85°C
• Very long service life

Applications

• Homes
• Industrial applications
• IT or control cabinets
• Offices
• Schools
• Workspace

REx 011 T6 Datasheet
