RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Right Angle M12 to Unterminated Connector and Cable, 4 Cores 5 m

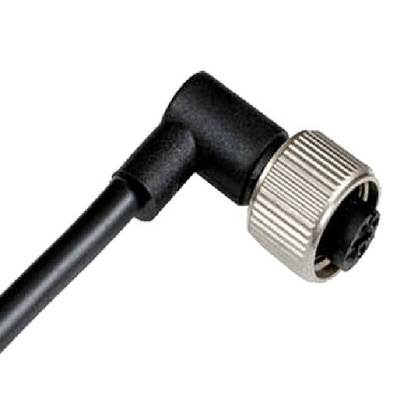

This right-angled connector from RS PRO is designed for use in tight spaces. The cable has one unterminated, partially stripped end, making it easy to customise the termination to fit different machinery and components.


The standard M12 connector on the cable's other end has a secure coupling nut to prevent the cable from coming loose. There's also a neoprene O-ring to help the cable stand up to high levels of vibration and corrosion. The brass contacts are highly conductive and the gold plating ensures good corrosion resistance, giving you an efficient, long-lasting connection.


To protect it from wear and chemical damage, the cable comes fitted with a polyvinyl chloride (PVC) sheath. This keeps the cable performing well for a long time, even in tough working environments.

Features and Benefits

• American Wire Gauge size of 24 AWG


• Multicore cable shape


• Brass conductor material


• Conductor resistance of ≥100 MΩ


• Connector A is an M12 right-angle female socket


• Connector B is unterminated


• Four contacts


• Cross-sectional area of 0.25 mm²


• Current rating of 4 A


• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)


• Length of 5 m


• Four cores


• Operating temperature range of -25°C to +75°C


• Polyvinyl chloride (PVC) outer sheath material


• Black sheath colour


• Polyurethane (PUR) sheath material


• Unshielded


• Voltage rating of 250 V
