RS PRO Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Straight M12 to Unterminated Connector and Cable, 4 Cores, 5 m

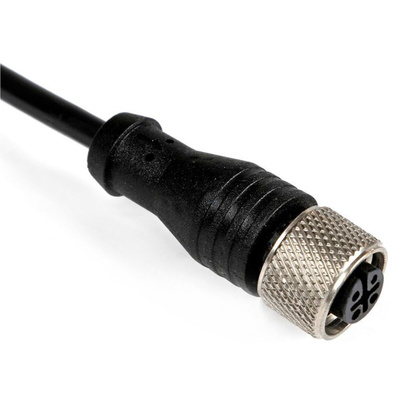

This straight M12 to unterminated connector and cable from RS PRO is a versatile way to transmit electrical power to your components. The M12 connector end fits industry-standard devices and the unterminated end can be set up to suit your equipment and needs.
This cable has a protective sheath made from polyurethane (PUR), a durable material that resists damage from oil and grease. The product also carries an Ingress Protection (IP) rating of IP67, meaning it's dust-tight and sealed against water jets, so the cable will remain in top working condition for a long time.
The cable is shielded, so it's insulated against electrical noise, signal impact and electromagnetic radiation. This protects the current transmission, making this a highly efficient, reliable product.

Features and Benefits

• American Wire Gauge size of 24 AWG
• Multicore cable shape
• Brass conductor material
• Connector A is an M12 straight female socket
• Connector B is unterminated
• Four contacts
• Cross-sectional area of 0.25 mm²
• Current rating of 4 A
• IP67 rating (dust-tight and sealed against water jets)
• Length of 5 m
• Four cores
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Shielded
• Meets European Conformity (CE), International Electrotechnical Commission IEC/EN 61076-2-101, Technical Inspection Association (TUV) standards for screw-locking circular electronic connectors
• Voltage rating of 250 V AC/DC
