RS PRO Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Straight M12 to Unterminated Connector and Cable, 5 Cores, 5 m

Need to create a custom connection to an electrical appliance or piece of equipment? Choose this connector and cable assembly from RS PRO. It has an unterminated end that allows you to customise it to fit thespecific equipment you are using.

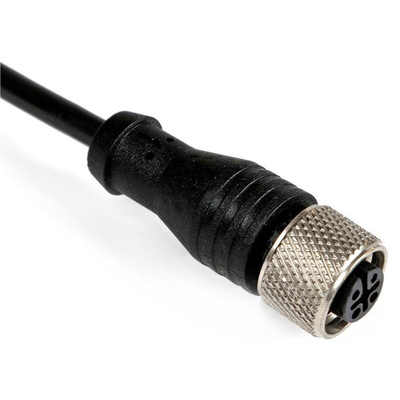

The cable's standard M12 end is a straight female socket with brass contacts for an efficient connection. The sheath is made of durable polyurethane (PUR) that protects the unit from mechanical wear and damage from oil and grease, ensuring a long product life.
This is a shielded cable, so the current is insulated from radiation and signal interference, providing a reliable connection. The Ingress Protection (IP) rating of IP67 means the product is dust-tight and sealed against water jets.

Features and Benefits

• American Wire Gauge size of 24 AWG
• Multicore cable shape
• Brass conductor material
• Connector A is an M12 straight female socket
• Connector B is unterminated
• Five contacts
• Cross-sectional area of 0.25 mm²
• Current rating of 4 A
• IP67 rating (dust-tight and sealed against water jets)
• Length of 5 m
• Five cores
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Shielded
• Meets European Conformity (CE), International Electrotechnical Commission IEC/EN 61076-2-101, Technical Inspection Association (TUV) standards for screw-locking circular electronic connectors
• Voltage rating of 60 V AC/DC
