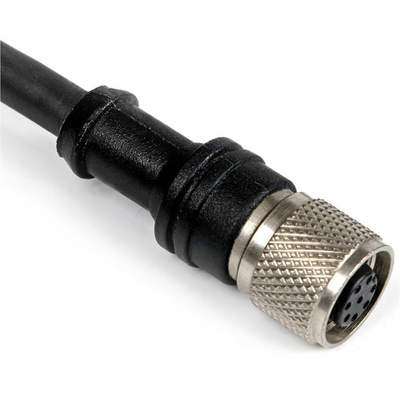

RS PRO Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

RS PRO Straight M12 to Unterminated Connector and Cable, 8 Cores, 2 m

If you need a bespoke way to link your industrial electronic equipment together, use this straight M12 to unterminated cable and connector from RS PRO. The unterminated end is partially stripped, allowing you to modify it to suit your specific needs.
The multicore cable has eight colour-coded wires tightly compacted to create a stronger, more durable product. The brass conductor material provides high conductivity for more efficient transmission and is coated in zinc to resist rust and corrosion for a long product life.
The cable's broad operating temperature range of -25°C to +75°C means it can stand up to harsh environments. It also has an Ingress Protection (IP) rating of IP67, so it's completely dust-tight and sealed against submersion in water of up to 1 m.

Features and Benefits

• American Wire Gauge size of 24 AWG
• Multicore cable shape
• Brass conductor material
• Conductor resistance of ≥100 mΩ
• Connector A is an M12 straight female socket
• Connector B is unterminated
• Eight contacts
• Cross-sectional area of 0.25 mm²
• Current rating of 2 A
• IP67 rating (dust-tight and sealed against 1 m of water)
• Length of 2 m
• Eight cores
• Operating temperature range of -25°C to +75°C
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Shielded
• Meets European Conformity (CE), International Electrotechnical Commission IEC/EN 61076-2-101, Technical Inspection Association (TUV) standards for screw-locking circular electronic connectors
• Voltage rating of 30 V
