RS PRO Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS Pro M12 Connector Female

Brought to you by RS Pro, these M12 connectors are gleaming with quality and durability. Each 8-pin socket is a welcome addition to your application. With an IP rating of IP67, these connectors are perfect within harsh environments. All models are highly reliable and excellent quality.

Features & Benefits

Current rating: 4A
Gold plated contacts
Supplied with Neoprene O-Ring

RS PRO Straight M12 to Unterminated Connector & Cable, 8 Core 5 m Cable

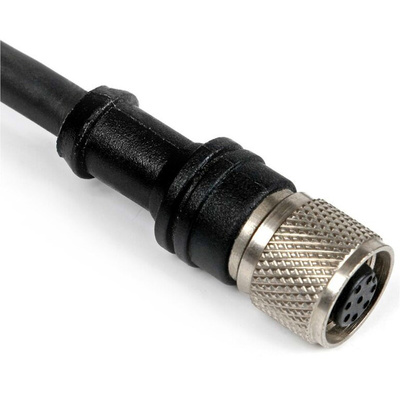

Need to transfer data securely in harsh industrial environments? This eight-core cable assembly from the RS PRO range offers a robust and reliable solution. One end is fitted with a straight female M12 connector, complete with a nickel-plated brass coupling nut to secure the connection and resist corrosion as well as a neoprene O-ring to prevent liquids getting in. The other end of the cable is unterminated so you can fit the right connector for your application.

Sheathed in protective polyurethane (PUR), the cable is resistant to many industrial chemicals. It's also been tested to ensure it won't damage equipment through electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains minimal hazardous substances (RoHS).

The five-metre cable can be used between -25°C and +70°C. It has a cross-sectional area of 0.25 mm and a voltage rating of 30 V. It's used in applications from process control to commercial electronics.

Features and Benefits

• Straight M12 female connector to unterminated cable
• Insulation resistance of 100 MΩ protects against electrostatic discharge
• 5-core unshielded cable
• 5 metres long
• Cross-sectional area of 0.25 mm²
• Operating temperature -25°C to +75˚C
• Voltage rating of 60 V
• IP67 rating means it can be submerged in one metre of water for 30 mins
• Amp rating of 2A

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
