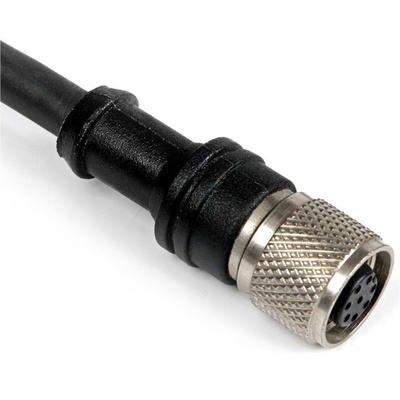

RS PRO Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

RS PRO Straight M12 to Unterminated Connector and Cable, 8 Cores, 5 m

Use this RS PRO M12 cable assembly to create a customised link for your industrial electronic components. The cable has one unterminated, partially stripped end that lets you terminate it according to the specifications of your application.


The cable's zinc-coated brass conductor is highly conductive and resistant to rust and corrosion, offering reliable transmission and long-lasting performance. The eight colour-coded wires in the cable's core are tightly compacted for a stronger, more durable product.


The cable has an IP67 rating, meaning it's dust-tight and protected against submersion in up to one metre of water. As it's suitable for use in temperatures as low as -25°C and as high as +75°C, this cable can withstand exposure to extreme environments.

Features and Benefits

• American Wire Gauge size of 24 AWG


• Multicore cable shape


• Brass conductor material


• Connector A is an M12 straight female socket


• Connector B is unterminated


• Eight contacts


• Cross-sectional area of 0.25 mm²


• Current rating of 2 A


• IP67 rating (dust-tight and sealed against 1 m of water)


• Length of 5 m


• Eight cores


• Operating temperature range of -25°C to +75°C


• Polyurethane (PUR) outer sheath material


• Black sheath colour


• Polyurethane (PUR) sheath material


• Shielded


• Meets European Conformity (CE), International Electrotechnical Commission IEC/EN 61076-2-101, Technical Inspection Association (TUV) standards for screw-locking circular electronic connectors


• Voltage rating of 30 V
