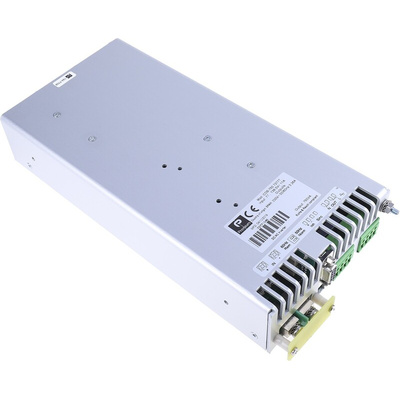

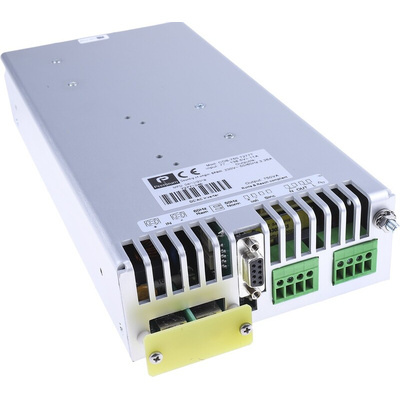

RS PRO DC AC Inverter, 110V dc Input, 230V ac Output, Railway Approved, Инвертор

RS PRO Isolated DC-AC Converter Chassis Mount, Voltage out 230 V AC

This DC-AC inverter from RS PRO is designed to deliver instantaneous power peaks with high efficiency. It has 10 threaded holes for chassis-mounting in different positions, making it a versatile option that's suited for use in a wide range of environments.

Safety is a major consideration of the design of this isolated DC-AC converter – it features current, overload, polarity and power protection. There's also an input and output alarm and remote inhibit functionality.

This inverter is especially well-suited to railway applications and is manufactured to meet with standards EN 45545-2, EN 50121-3-2 and EN 50155, relating to the safety of electrical equipment used on railway rolling stock. It also complies with EN 60950 (safety of information technology equipment) and EN 61000-6-2 (electromagnetic immunity). The inverter is a DNV GL (Det Norske Veritas Germanischer Lloyd) maritime type-approved product, making it ideal for use in maritime situations.

Features and Benefits

• RS PRO DC-AC inverter
• Dimensions of 270.5 mm (L) x 160 mm (D) x 52.5 (W)
• Mean time between failures (MTBF) of 160,000 hours
• Chassis mounting
• Loading controlled cooling fan
• One output connection
• Pure sine wave output
• Input voltage of 77 to 138 V DC
• Maximum input current of 120 mA
• Single-phase electrical output
• Output voltage of 230 V AC
• Output current of 3.26 A
• Continuous output power of 750 W, 750 VA
• Selectable output frequency of 50 or 60 Hz
• Loading controlled cooling fan
• Minimum operating temperature of -25°C (full and half-load)
• Maximum operating temperature of +55°C (full load) or +70°C (half-load)
• High input / out isolation of 3,000 Vrms
• Input and output alarms
• Remote inhibit via RS232
• Protection features include current, overload, polarity and power protection
