RS PRO DC AC Inverter, 28V dc Input, 230V ac Output, Railway Approved, Инвертор

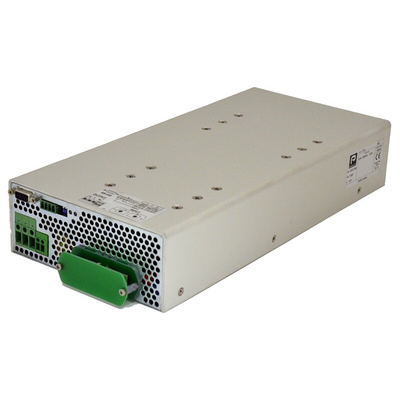

RS PRO Isolated DC-DC Converter Chassis Mount, Voltage out 230 V AC

Safely convert a source of direct current (DC) from one voltage to another with this isolated 1500 W DC-DC converter. The unit's adjustable output voltage means you can safely operate a broad range of devices, including sensitive equipment.
You can connect this unit to remote controls via an RS232 port, or to alarms using isolated relay contacts if you're installing a security system. To protect your end device from damage, it's isolated from the power supply by a high input-output isolation of 3000 Vrms (voltage regulator modules).
You can use this converter in a wide range of temperatures from -25°C up to +70°C. What's more, it's protected against overload, polarity and overpower for your safety.

Features and Benefits

• Loading controlled cooling method
• Cooling fan depth of 160 mm
• Single output connection
• Input voltage of 16.8 to 30 V DC
• Maximum input current of >400 mA
• Mean time between failures (MTBF) of 130,000 hours
• Output voltage of 230 V AC
• Output current of 6.5 A
• Output frequency range of 50 to 60 Hz
• Chassis mounting
• Dimensions of 359.5 (L) x 64.5 (W) x 160 mm (D)
• Pure sine wave output voltage
• Single-phase output
• Weight of 3.8 kg
