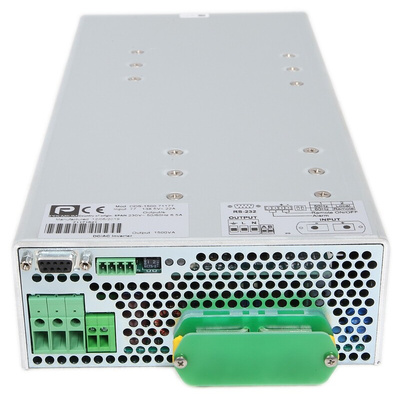

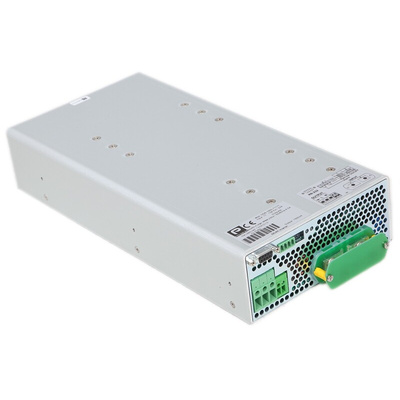

RS PRO DC AC Inverter, 110V dc Input, 230V ac Output, Railway Approved, Инвертор

RS PRO Isolated DC-AC Converter Chassis Mount, Voltage Out 230 V AC

This DC-AC power inverter from RS PRO is designed to deliver AC output that can be used to power electric appliances.

For your peace of mind during use, it includes built-in safety features such as an input and output alarm. Green and red LEDs show if it's working correctly or not. High input / output isolation of 3,000 Vrms also improves the inverter's safety. To meet your requirements, set the output frequency on isolated DC-AC converter to 50 or 60 Hz. Thanks to the RS232 port, you can easily alter and monitor the settings on the device.

It offers maximum average power protection as well as maximum output peak current protection. This protects the inverter even when an output short-circuit occurs. It also has a disable function for input under-voltage, which protects the batteries from harmful discharges. This inverter is suitable for use in heavy engineering applications.

Features and Benefits

• RS PRO isolated DC-AC inverter
• Mean time between failures (MTBF) of 130,000 hours
• Chassis mounting
• Loading controlled cooling fan
• One output connection
• Sine wave output
• Input voltage of 77 to 138 V DC
• Maximum input current of 100 mA
• Single-phase output
• Output is pure sine wave
• Output voltage of 230 V ac
• Output current of 6.5 A
• Selectable output frequency of 50 or 60 Hz
• Continuous output power of 1,500 W
• Loading controlled cooling fan
• Dimensions of 359.5 x 160 x 64.5 mm
• Minimum operating temperature of -25°C (full load and half-load)
• Maximum operating temperature of +55°C (full load) or +70°C (half-load)
• Protection features include current protection, overload protection, polarity protection and power protection
• Complies with EN 45545-2 (fire safety of railway equipment)
• Complies with EN 50121-3-2 (emissions of railway equipment)
• Complies with EN 50155 (electronic equipment on railway rolling stock)
• Complies with EN 60950 (safety of information technology equipment)
• Complies with EN 61000-6-2 (electromagnetic immunity)
