DE4H-04GD31W1DB, InnoDisk EDC4000 IDE DOM 44 Pins 4 GB Internal SSD Drive, Диск

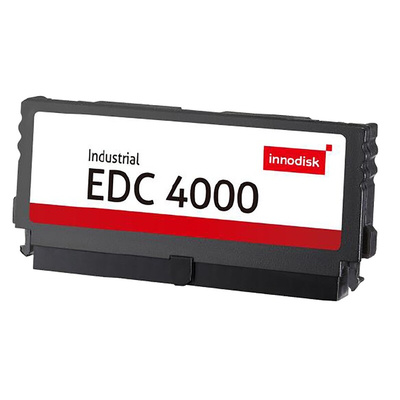

Innodisk EDC 4000 Industrial SLC Vertical PATA / IDE DOM

Innodisk’s vertical EDC 4000 fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40 MB and 20 MB per second respectively. The vertical EDC 4000 comes in capacities ranging from 128 MB to 16 GB.

Embedded DISK CARD (EDC 4000) supports advanced PIO (0-4), Multi-Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing.

• iSMART disk health monitoring
• Support static wear levelling algorithm
• Intelligent error recovery system
• Mechanical design for anti-vibration
• High reliability and compatibility
• Enhanced power cycling management
• Industrial Grade Toshiba SLC 60K NAND
• Controlled BOM
• Operating Temperature range: -40ﾟC to +85ﾟC
