HMC8043-G, Rohde & Schwarz HMC804X Series Digital Bench Power Supply, 0 → 30V, 3A, 3-Output, 33W, Блок питания

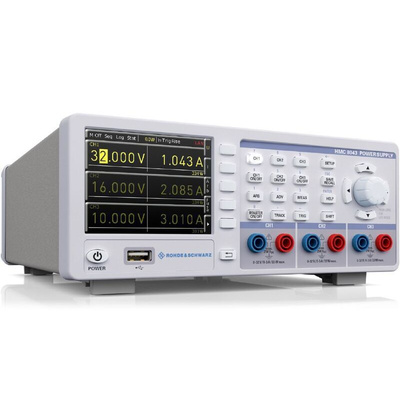

R&S HMC8043-G 3 Channel Bench Power Supply

The three-channel R&S®HMC8043 delivers a maximum of 3 A per channel. The three-channel model allows you to connect multiple outputs in parallel or in series to increase the voltage or current. The outputs are galvanically isolated, floating, and protected against overloading and short circuits. Voltage, current and power values are output on a brilliant QVGA display.

Applications

• Engineering Lab
• Automatic test equipment (ATE)
• Production environment

Features and Benefits

• Clear display of all measured parameters
• Galvanically isolated, floating and short-circuit-proof outputs
• Protective functions adjustable for each channel
• Ideal Power supply for hardware developers and labs
• Remote control
• FuseLink (freely combinable electronic fuses)
• EasyArb function for user-definable V/I curves
• EasyRamp for simulating a start-up curve (directly programmable on device)
• Sequencing (sequenced start of channels)
• Analogue input for external control via voltage (0 V to 10 V) and current (4 mA to 20 mA)
• Trigger input for starting/controlling EasyArb
• Data logging to USB flash drive in CSV format
• Overvoltage protection (OVP) for all outputs
• Overpower protection (OPP) for all outputs
