Rohde & Schwarz HM6050-2D Power Quality Analyser, 16A Max, 230V ac Max

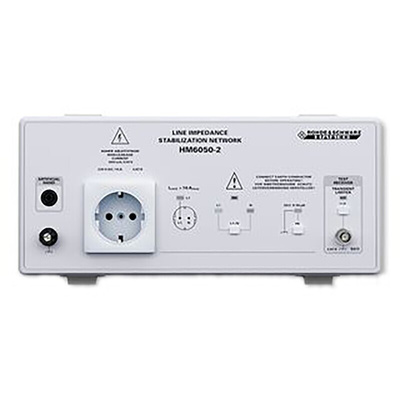

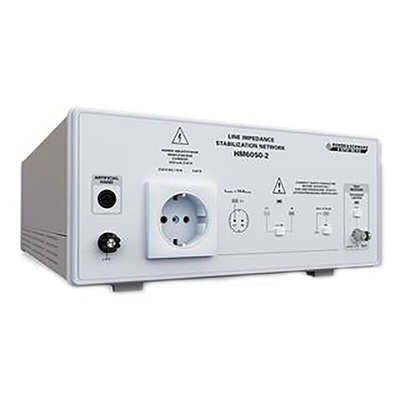

R&S HM6050-2 Line Impedance Stabilisation Network

The HM6050-2 line impedance stabilization network (LISN) is basically a filter network.

Features

Measurement of Line-conducted Interference within the Range from 9kHz…30MHz (CISPR 16)
Selectable Transient Limiter
Artificial Hand Connector
A lowpass filter connects the DUT to the AC power lines.
The LISN presents the signal with a well-defined impedance
For measurements with a spectrum analyzer/EMC receiver, the EMC signal is available after having
passed through a highpass filter.
Two identical networks provide the asymmetric noise emission signals of the DUT’s L1 and N power lines
The user can choose between the signals; the selected signal will be available at the HM6050-2’s test signal output
EMI pre-compliance measurements in engineering labs
Remotely controlled EMI measurements for EMC diagnosis and pre-compliance
HM6050-2D (Schuko Plug Version for Germany, Spain, Italy, France, ...) 230V ±10%, 50 Hz to 60Hz
HM6050-2K (UK Version) 230V ±10%, 50Hz to 60Hz
HM6050-2S (US Version) 115V ±10%, 50Hz to 60Hz
