Rohde & Schwarz FPC-P2 Desktop Spectrum Analyser, 5 kHz → 2 GHz, Анализатор спектра

1448211
Номер производителя: FPC-P2Производитель: Rohde & Schwarz
Цена за шт.
746700.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

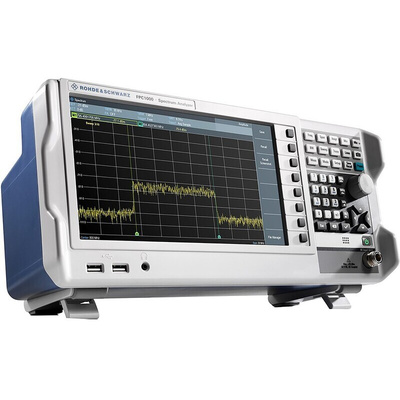

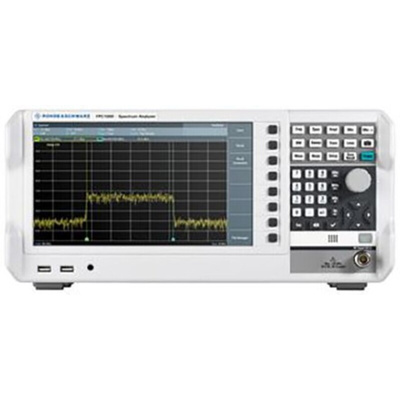

R&S®FPC1000 Series Spectrum Analyser

The FPC1000 Series from Rohde and Schwarz is a 5 kHz to 1 GHz spectrum analyser. The FPC1000 spectrum analyser delivers unexpected performance. Extraordinarily low noise floor and high maximum input power combine to provide best dynamic range. Resolution bandwidth settings to 1 Hz resolve finer spectral details. The FPC1000 series features 10.1", WXGA (1366 x 768 pixels) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via Smart Wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless WiFi connectivity. R&S InstrumentView for Windows and the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere.

Features and Benefits

• 100% software upgradeable via keycode
• Provides low noise floor of -150 dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• FPC1000 can measure high-power signals of up to +30 dBm (1 W)
• 6 markers shown vividly in different colours
• Two USB2.0 ports for storage media and connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15 seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement

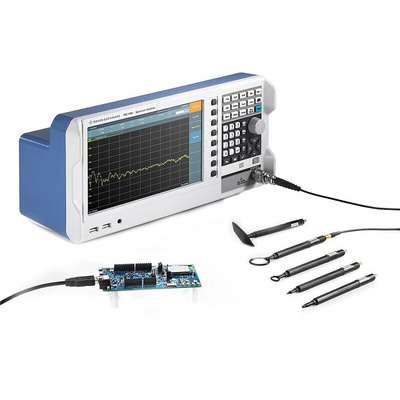

• Optional accessories ZZA-FPC1 19" rackmount kit, HZ-15 Near field probes, 30 MHz to 3 GHz, HZ-16 Amplifier, 100 kHz to 3 GHz TB-Z3 soft carrying case
• Dimension is 396 x 185 x 156 mm, weight is 3Kg
• WiFi enabled, supported by included remote control and measurement software
• Three-year standard warranty
• FPC1000 Series

R&S®FPC1000 Spectrum Analyzer

Техническая спецификация
pdfFPC Spectrum Datasheet
pdfImportant Specifications Datasheet
Вес:
3кг
ВЧ вход:
N Разъем
Высота:
185мм
Длина:
396мм
Количество каналов:
1
Максимальная частота:
2ГГц
Маркеры:
Частота
Минимальная частота:
5 кГц
Модель р:
FPC-P2
Настольный/Ручной:
Desktop
Настройка режимов:
Span
Полоса - ширина:
5 кГц → 2 ГГц
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
+10°C
Размеры:
396 x 156 x 185мм
Следы волны:
Average, Maximum Hold, Minimum Hold, View
Тип дисплея:
LCD
Тип интерфейса:
USB
Ширина:
156мм
