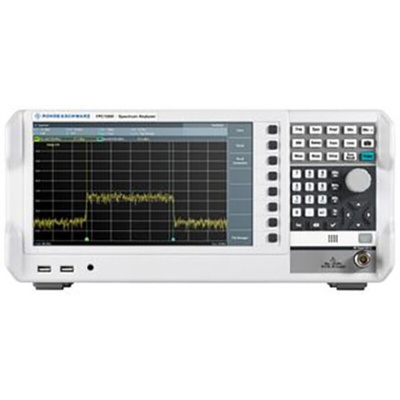

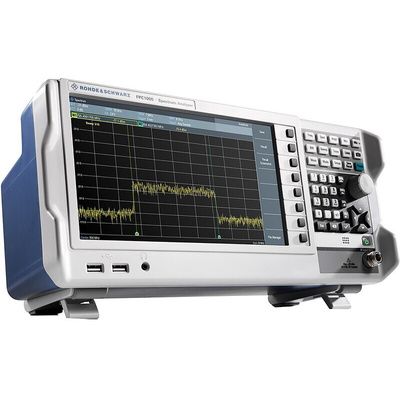

Rohde & Schwarz FPC-P3 Desktop Spectrum Analyser, 5 kHz → 3 GHz, Анализатор спектра

Rohde & Schwarz Spectrum Analyser

The Rohde & Schwarz spectrum analyser has 1 channel and its operating frequency ranges from 5kHz and 3GHz. The extremely low noise floor and high maximum input power combine to provide the best dynamic range. The resolution bandwidth can be set to 1Hz for finer spectral details. This spectrum analyser has 26% larger display and has a 160% higher resolution than other instruments. This analyser can be controlled via smart wireless remote control software. It also supports wired Ethernet and wireless Wi-Fi connectivity. It also has R&S InstrumentView for Windows and for iOS/Android it has app-based R&S MobileView platforms that enable remote controlling and measurement anytime and anywhere.

Features and Benefits

Provides low noise floor of -150dBm
Optional FPC1000-B22 preamplifier to increase sensitivity
Measures high-power signals of up to 30dBm (1W)
Screen size is 10.1in
Six markers shown vividly in different colours
Two USB 2.0 ports for storage media and connecting accessories, headphone jack, audio speaker and RF input
Soft menu selection for quick access to key tools
Measurement set-up buttons
Approximately 15 seconds boot time
Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis and R&S FPC-K55 advanced measurement

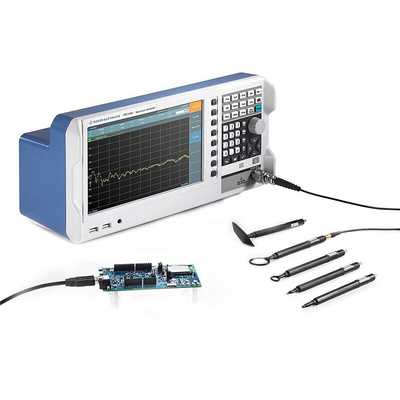

Optional accessories ZZA-FPC1 19in rackmount kit, HZ-15 Near field probes, 30MHz to 3GHz, HZ-16 Amplifier, 100kHz to 3GHz TB-Z3 and a soft carrying case
Wi-Fi enabled
Supported by included remote control and measurement software
100% software upgradeable via key code
3-year standard warranty
Length is 396mm, width is 156mm and height is 185mm

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

VDE certified
GS certified
UL 61010-1 approval
CAN/CSA-C22
IEC 61010-1
EN 61010-1
ISO9001
ISO14001
