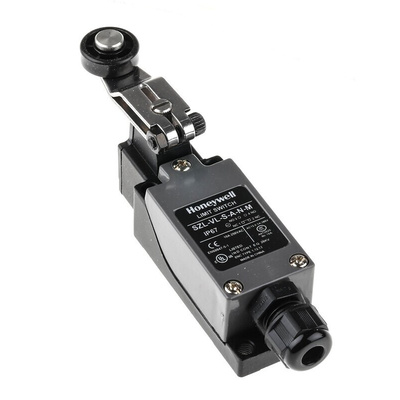

SZL-VL-S-A-N-M, Honeywell SZL-VL Series Roller Lever Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 380 V ac 0.5A Max

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

Honeywell Snap-Action Roller Lever Limit Switch, 220V DC, 380V AC - SZL-VL Series - SZL-VL-S-A-N-M

Use this limit switch from Honeywell to increase safety in moving industrial machinery. A rugged die-cast metal construction and a glass-filled, flame-retardant thermoplastic cover make it durable enough to withstand use in demanding applications. It has an IP67 (ingress protection) rating, so it's protected against dust and submersion in 1m of water for up to 30 minutes. Thanks to its long mechanical lifespan of 10,000,000 cycles and its electrical lifespan of 500,000 cycles, it's a reliable switch that needs little maintenance.

Features & Benefits

• Removable cover for easy access during installation and maintenance
• Compact size of 28.5 (length) x 82.5 (width) x 41.2mm (depth) for use in tight spaces
• Snap-action actuator provides a quick response to both fast and slow-moving objects or forces

Applications

• Automotive industry
• Conveyor and packaging machinery
• Mobile light towers
• Scissor and boom equipment

Can I customise this switch?

Yes, this switch has a modular design, including an adjustable actuator that can be configured to meet your needs. It can also be side or front-mounted for added flexibility.
