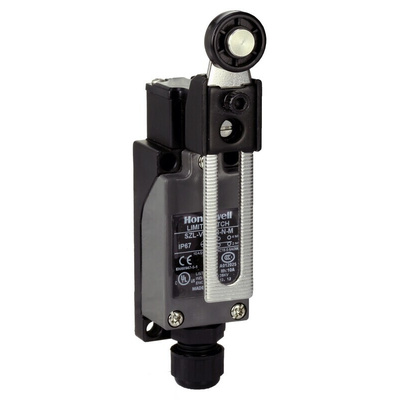

SZL-VL-S-B-N-M, Honeywell SZL-VL Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 220 V dc

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

Honeywell Side Rotary Roller-Lever Limit Switch, 220V DC, 380V AC - SZL-VL Series - SZL-VL-S-B-N-M

Use this roller limit switch from Honeywell to keep automated and mechanical processes running smoothly. The lever can be adjusted to suit your needs – you can minimise the space it takes up or extend the lever to reach objects that are further away. The unit is built to last and has a long mechanical lifespan of 10,000,000 cycles, saving you maintenance time and materials. It has a robust metal case that's coated in flame-retardant thermoplastic, so it's well-suited to demanding industrial applications. You can use this switch in moving machinery such as scissor lifts and conveyor belts.

Features & Benefits

• High ingress protection rating of IP67 means it's dust-tight and withstands short periods of time immersed in water
• Removable cover to simplify maintenance
• Snap-action, positive-opening contacts for clear and reliable safety signalling
• Space inside unit to make wiring easier

Applications

• Packing, warehousing and logistics
• Mechanical engineering
• Safety solutions

What's the electrical rating of this limit switch?

This limit switch has an electrical rating of 10A, so it's suitable for use with the heavier electrical loads that are commonly found in industrial applications.
