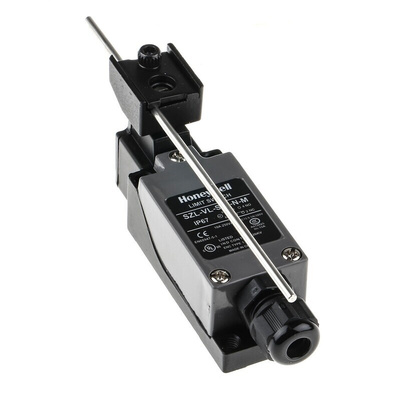

SZL-VL-S-C-N-M, Honeywell SZL-VL Series Rod Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 10A Max

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

Honeywell Limit Switch, M12 Connection, 220V DC Voltage Rating - SZL-VL-S Series - SZL-VL-S-C-N-M

Use this limit switch from Honeywell for position detection applications in your industrial environment. Its compact dimensions of 28.5 (length) x 129 (width) x 46.7mm (depth) make it suitable for installation in areas where space is limited. An IP67 rating means this unit is dust-tight and protected against immersion in 1m of water for up to 30 minutes, so it's suitable for use in harsh environments.

Features & Benefits

• Strong die-cast metal body for resistance to corrosion and impact
• Flame-retardant thermoplastic cover for safety in the event of a fire
• Long mechanical lifespan of up to 10 million cycles for long-lasting performance

Applications

• Escalators and motorised walkways
• Conveyors
• Mobile light towers

What's the voltage rating of this limit switch?

This limit switch has a voltage rating of 380V AC and 220V DC, making it suitable for use in high-power applications.
