SZL-VL-S-D-N-M, Honeywell SZL-VL Series Plunger Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 10A Max

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

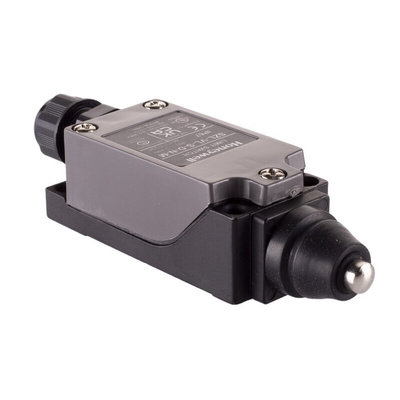

Honeywell Limit Switch, Top Pin Plunger Actuator, M12 Connection - SZL-VL-S Series - SZL-VL-S-D-N-M

This limit switch from Honeywell lets you automate industrial processes in your work environment. Its top pin plunger actuator has a low operating force of 9N, making it highly sensitive to the presence of objects. The snap-action mechanism ensures quick switching for a rapid response. Thanks to its long mechanical lifespan of 10 million cycles, it's a long-lasting choice.

Features & Benefits

• IP67 rating means it's dust-tight and can withstand immersion in 1m of water for up to 30 minutes
• Wide operating temperature range between -20°C and +70°C for use in harsh conditions
• Flame-retardant thermoplastic cover for safety in the event of a fire

Applications

• Lifts and hoists
• Conveyors
• Doors and gates

How do I mount this limit switch?

This limit switch is designed for front or side mounting for versatile installation.
