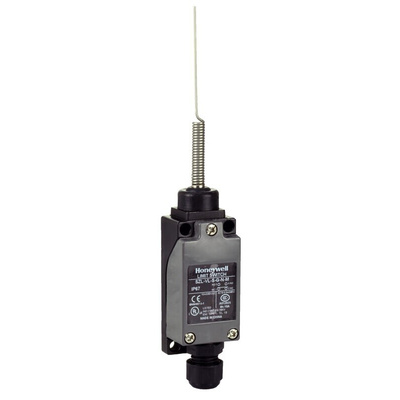

SZL-VL-S-G-N-M, Honeywell SZL-VL Series Cats Whisker Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 10A Max

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

Honeywell Limit Switch, Snap-Action Contacts, 2N Operating Force - SZL-VL-S Series - SZL-VL-S-G-N-M

Detect the presence of objects in your industrial application with this limit switch from Honeywell. It has a snap-action mechanism to ensure quick switching for enhanced efficiency. The unit's body is made of die-cast metal for resistance to impact and corrosion. As the removable cover is made of flame-retardant thermoplastic it helps to protect your systems in the event of a fire.

Features & Benefits

• Long mechanical lifespan of 10 million cycles for long-lasting performance
• Designed for front or side mounting for flexible installation
• Wide operating temperature range between -20°C and +70°C for use in harsh conditions

Applications

• Lifts and overhead doors
• Conveying machines
• Packaging equipment
• Agriculture and farming

Can I use this limit switch in damp environments?

This limit switch has an IP67 rating, which means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes. This makes it safe for use in damp environments.
