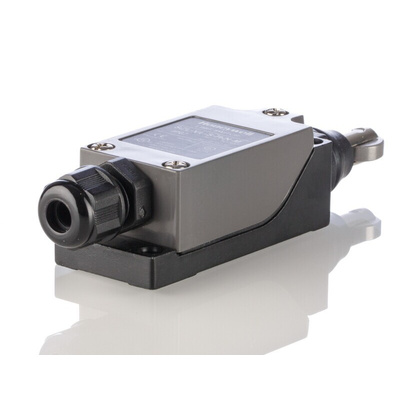

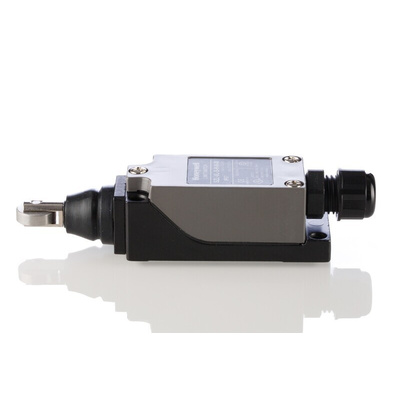

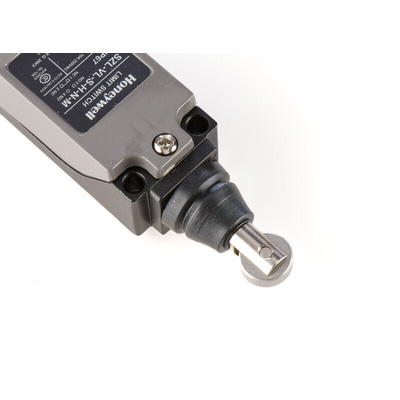

SZL-VL-S-H-N-M, Honeywell SZL-VL Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 380 V ac 0.5A Max

Honeywell Limits SZL-VL-S Miniature Limit Switches

Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.

Features and Benefits

Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles

Honeywell Snap-Action Roller Plunger Limit Switch, 220V DC, M12 - SZL-VL Series - SZL-VL-S-A-N-M

When you need to mount a fast-acting limit switch in a tight space, choose this snap-action roller plunger limit switch from Honeywell. It has compact dimensions of just 28.5 (length) x 98.5 (width) x 25.7mm (depth) for an easier fit. The user-friendly design features a removable cover for trouble-free wiring and side or front-fixing options to suit your needs. This switch has a current rating of 10A for use with heavy loads. Thanks to its wide operating temperature range of -20°C to +70°C, it's suitable for use in harsh conditions.

Features & Benefits

• Rugged die-cast metal housing and reinforced thermoplastic cover for resistance to impact and corrosion
• Long mechanical lifespan of 10,000,000 cycles for durability and reliable performance
• Maximum voltage of 220V DC or 380V DC for use in high-powered applications

Applications

• Machine tools
• Agricultural equipment
• Process automation

Can I use this limit switch in damp or dusty environments?

This switch has an IP67 (ingress protection) rating, meaning it's fully shielded against dust and can withstand submersion in 1m of water for up to 30 minutes. This makes it a good choice for use in areas subject to moisture and dirt.
