RS PRO DIN Rail PID Temperature Controller, 22.5 x 110mm 1 Input, 2 Output Relay, Relay-CO, 24 V ac/dc Supply Voltage, Регулятор температуры

RS PRO DIN Rail PID Temperature Controller, 22.5 x 110 mm 1 Input, 2 Output Relay, Relay-CO, 24 V ac/dc Supply Voltage

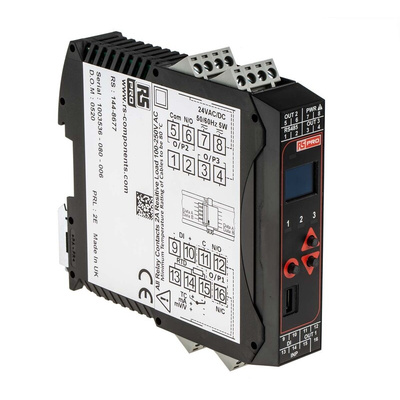

This DIN-rail PID (proportional, integral, derivative) temperature controller from the RS PRO range uses a control loop mechanism to regulate the process temperature of equipment.

Basic heating devices can be used for similar purposes, but their performance is generally less accurate and less energy-efficient. PID controllers on the other hand use mathematical formulas to keep process temperatures at the user setpoint, producing fewer fluctuations and requiring less power consumption.

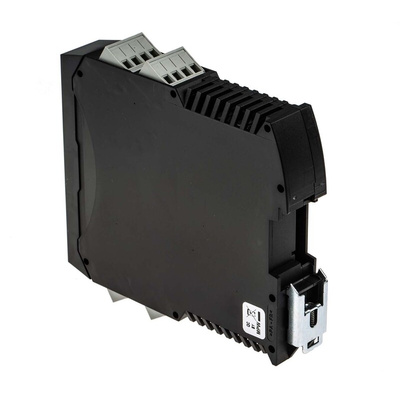

The DIN rail mount provides more flexibility than panel-mounted alternatives, as the connector can be slid or snapped into place on the rail without any equipment.

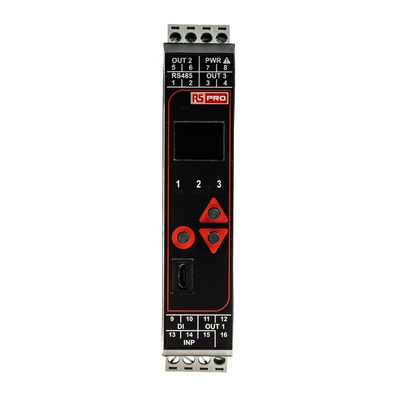

The controller has a clear OLED (organic light-emitting diode) display and simple 3-button operation, so it's fast to set up and simple to program. Overall, the controller provides a reliable solution where stable temperature control is required.

Features and Benefits

• Relay and relay-CO output types
• Two outputs
• One universal input
• Supply voltage of 24 V ac/dc
• Easy-to-read OLED display
• DC current, DC voltage, RTD and thermocouple inputs (universal)
• Screw termination type
• DIN-rail (Deutsches Institut für Normung) mounting
• Operating temperature range of 0°C to +55°C
• Panel depth of 123 mm
• Termination via screw
• IP ratings include IP20
• 22.5 x 110 mm
• PID type controller

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Manual

RS PRO Datasheet
