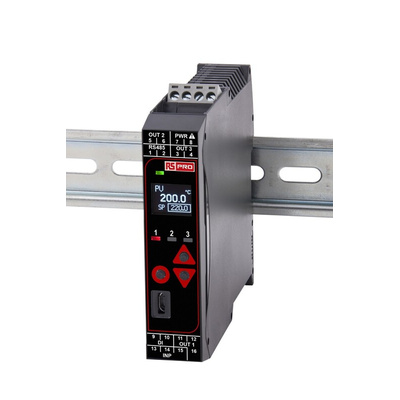

RS PRO DIN Rail PID Temperature Controller, 22.5 x 110 mm 1 Input, 3 Output Relay, Relay-CO, SSR, 24 V AC/DC Supply

You can use this reliable RS PRO PID (proportional-integral-derivative) temperature controller to automatically adjust temperatures to stay within a predetermined range. The controller is designed for easy setup and has a user-friendly menu for quickly configuring main parameters.
It has a clear organic light-emitting diode (OLED) display with easy-to-read text and icons. For versatile use, you can choose from a thermocouple, PT100 or linear DC sensor input. The device also has up to three outputs for connection to a relay, relay-CO (overcurrent unit) or solid-state relay (SSR), giving you more options to meet your application's requirements.
This unit has a screw-type termination and can be mounted to a DIN rail for ease of installation. It complies with American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic discharge (ESD) standards to minimise the risk of discharge.

Features and Benefits

• Communication module available
• Relay configurable outputs
• On/off, PID controller type
• Black display colour
• OLED display type
• DC current, DC voltage, RTD (resistance temperature detector), thermocouple input type
• Ingress Protection (IP) rating of IP20
• Maximum operating temperature of +55°C
• Minimum operating temperature of 0°C
• DIN rail mounting type
• One input
• Three outputs
• Relay, relay-CO, SSR output type
• Panel depth of 123 mm
• Size of 22.5 (length) x 110 mm (width)
• Supply voltage of 24 V AC/DC
• Screw termination type
