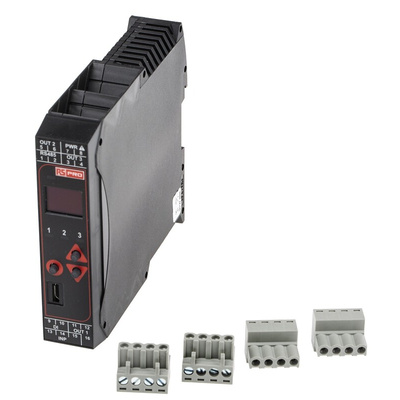

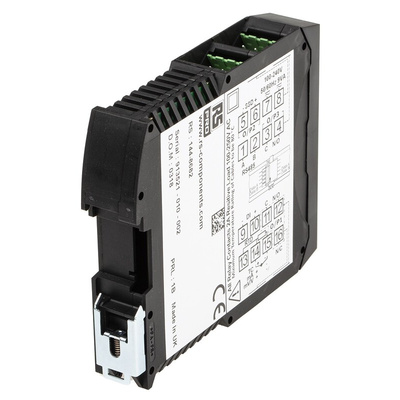

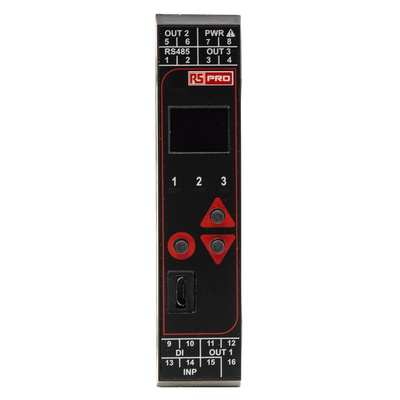

RS PRO DIN Rail PID Temperature Controller, 22.5 x 110 mm 1 Input, 3 Output Changeover Relay, Relay, SSR, 100 to 240 V AC

Need a way to automatically adjust temperatures to stay within a predetermined range? Choose this PID (proportional-integral-derivative) temperature controller from RS PRO. It's quick and easy to set up and configure its main parameters thanks to its user-friendly menu.


The unit is highly versatile as it has three outputs for connection to a solid-state relay (SSR), relay or changeover relay. It has a screw-type termination and can be mounted to a DIN rail for ease of installation. Its clear organic light-emitting diode (OLED) display makes the text and icons easy to read.


Engineers have rigorously tested this part for quality, safety and suitability. To minimise the risk of discharge, it meets American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) electrostatic discharge (ESD) standards.

Features and Benefits

• Communication module available


• Relay configurable outputs


• On/off, PID controller type


• Black display colour


• OLED display type


• DC current, DC voltage, RTD (resistance temperature detector), thermocouple input type


• Ingress Protection (IP) rating of IP20


• Maximum operating temperature of +55°C


• Minimum operating temperature of 0ºC


• DIN rail mounting type


• One input


• Three outputs


• Changeover relay, relay, SSR output type


• Panel depth of 123 mm


• Size of 22.5 mm (length) x 110 mm (width)


• Supply voltage of 100 to 240 V AC


• Screw termination type
