MTL1145, Eaton MTL Series Signal Conditioner, Current Input, Current, Voltage Output, 10 → 32V dc Supply, Реле

1448690
Номер производителя: MTL1145Производитель: Eaton
Цена за шт.
52338.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

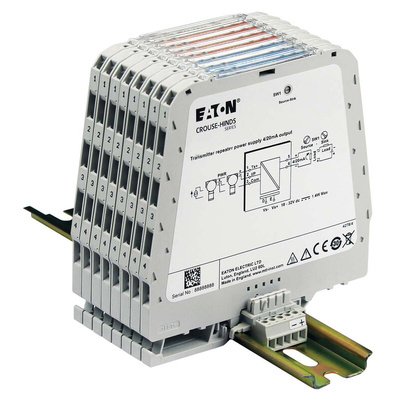

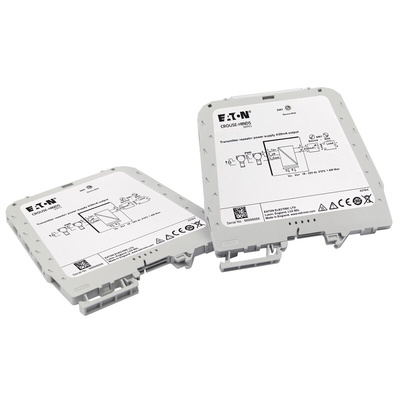

Eaton MTL1145 Loop Powered Current Repeater

Eaton MTL1145 is a 1 channel isolator which accepts 4 to 20 mA output source, isolates and repeats the signal. The repeated signal is loop powered from the original signal source. Alternatively, a loop powered transmitter can be powered via the isolator from a 2-wire system input. The signal conditioner is DIN Rail mountable.

Features and Benefits

1 Channel for 4 to 20 mA analogue outputs/inputs
Loop power from original signal source is done in source mode
Loop power transmitter powered by the isolator is done in sink mode
DIN Rail mounting

Note

Eaton formerly known as MTL

MTL Signal Conditioners

Техническая спецификация
pdfDatasheet
