1521850000, Weidmuller A Series Beige DIN Rail Terminal Block, 2.5mm², Single-Level, Push In Termination, ATEX

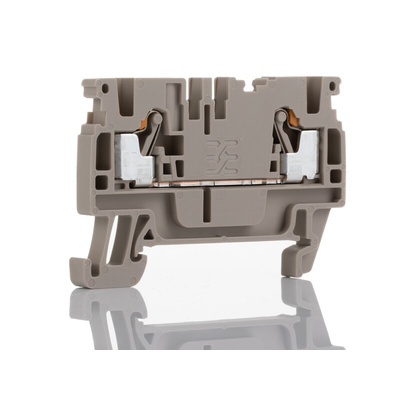

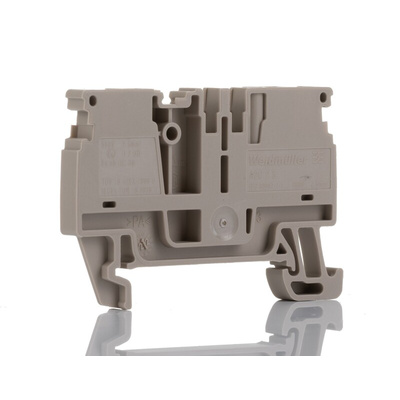

Weidmuller DIN Rail Terminal Block, Push-in Terminals, 5.1mm Width - A Series - 1521850000

Charge ahead with demanding electrical connections using this DIN rail terminal block from Weidmuller. The unit simply snaps into place on your rail for quick installation, and push-in terminals mean you'll have it wired up in a snap. When you need to disconnect your wires, tool-free release tabs make quick work of the task. Thanks to its voltage rating of 800V and its current rating of 32A, this block is just the thing for use in high-power systems.

• Space for labels (873-0948) on the front and sides, making identification easy on crowded rails
• Wide operating temperature range between -60°C and +130°C for use in harsh conditions
• Wemid housing is resistant to wear and corrosion for durability
• Accepts wire sizes between 28 and 12AWG for flexibility

Applications

• Oil and gas industry
• Food and beverage production
• Wood mills
• Textile industry

The innovative PUSH IN technology reduces the amountof time you spend on wiring to a minimum. Directinsertion guarantees high conductor pull-out forces andsimple handling for all conductor types

Is this DIN rail terminal block safe to use in explosive areas?

Yes, this terminal block is designed for use in areas with explosive atmospheres, so it's a safe choice for volatile environments.
