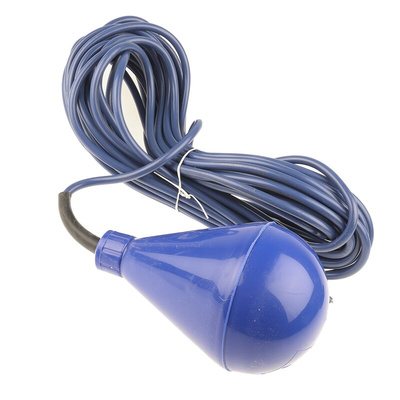

5828803, Xylem ENM-10 Series Cable Mount Polypropylene Float Switch, Float, 13m Cable

Xylem Level Switch

The Xylem ENM-10 series float switch is a liquid level regulator with a liquid density between 0.95 and 1.10g/cm³. It is a mechanical switch in a plastic casing, freely suspended at the desired height from its cable. As soon as the liquid level reaches the regulator, the casing tilts leading to the breaking of the circuit or closing of the mechanical switch. This action results in starting or stopping a pump or actuating an alarm device. The regulator casing is made of polypropylene and the cable is sheathed with a special PVC or nitrile/ PVC rubber compound. Instead of using an adhesive, the plastic components are welded and screwed together. Also, the impurities and deposits do not adhere to the smooth casing.

Features and Benefits

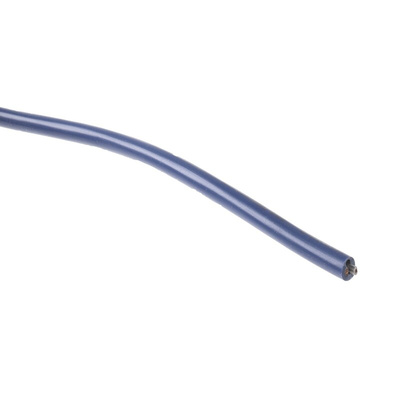

It has 13m PVC cable

No wear, no maintenance
In sewage pumping stations, for ground water and drainage pumping. Also, for most level control applications
Simple method for most level control applications and still very reliable and with an impressive track record
Simple, reliable and effective

Applications

Wastewater pumping stations
Ground water or drainage pumping

Certifications

CE certified
CSA certified
SEMKO certified
NEMKO certified
DEMKO certified
IP68 rated
EN61058

Datasheet
