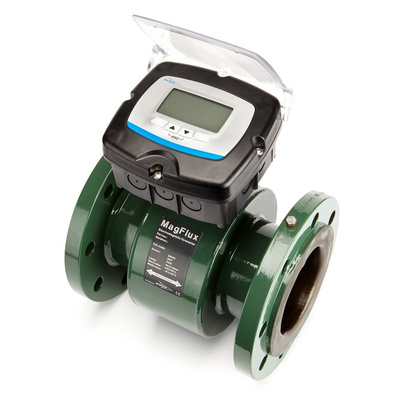

850084, Xylem Flygt MagFlux Series Flow Sensor for Liquid, 0.2 m/s Min, 10 m/s Max

Xylem Flow Sensor

The Xylem Flygt MagFlux series flow sensor sense liquid flow rate of 0.2 m/s to 10 m/s. This is easy to install, easy to operate and an authentic solution for flow measurement of pipes. It can detect an empty pipe whereas, the bi-directional sensors set the direction of the flow after installation. Each display unit can operate and display up to 4 MagFlux. The intuitive 5-line text display allows the MagFlux to display information in various languages. This is, by far the most flexible flowmeter that can withstand submersible depths up to 10m. It has a supply voltage of 230VAC.
Product application information:
MagFlux flowmeters have been designed for use in all types of conductive liquids including drinking water, wastewater, sludge and process water.

Features and Benefits

Display indication: Indication of flow, flow direction, volume, totalizers, configuration, and graph
Communication: MODBUS RTU-mode
Memory storage: 32MB flash memory, 168,000 loggings including date, time, and value (curve display)
5-line display able to show graphs
Built-in data logger with graphic display
Automatic electrode cleaning
0,25% accuracy over the full range from 0,2m/seconds to 10m/seconds (0.6 ft./seconds to 30 ft./seconds)

Certifications

WRAS
UL listed
CE approved
IP68 rated
NEMA 6P

Datasheet

Electromagnetic Flow Meter Installation and User Manual
