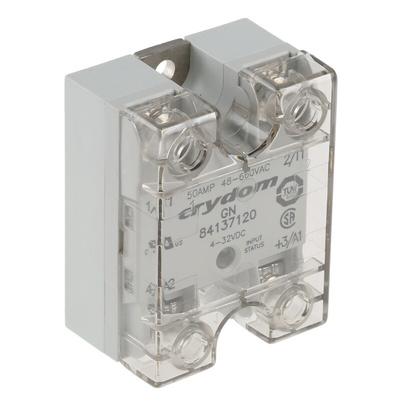

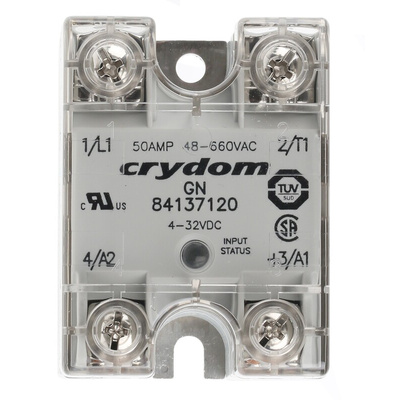

84137120, Sensata / Crydom 8413 Series Solid State Relay, 50 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control, Реле

Crydom GN Series Solid State Relays

Crydom GN series robust and versatile general purpose AC and DC panel mount solid state relays. These powerful single phase SSRs have superior thermal performance thanks to the use of DBC technology. The GN series solid state relays feature anti-rotation barriers, flexible control voltage options, LED input status indicator, overvoltage protection (on all AC output relays), and a wide range of power ratings.

Features and Benefits

Available with or without IP20 touchsafe cover
LED input status indicator
UL Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
EMC Compliant to level 3

Sensata | Crydom Solid-State Relay, Zero-Voltage Turn-On, 50A Rated Load Current - GN Series - 84137120

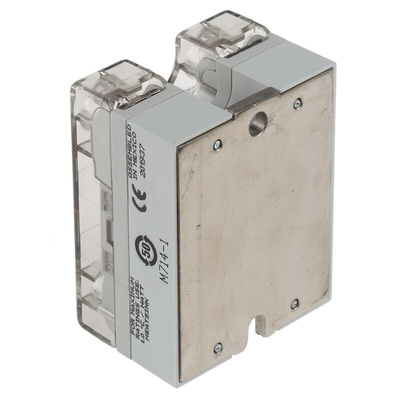

Use this solid-state relay from Sensata | Crydom when you need a powerful switching solution in your industrial work environment. It's a practical choice for applications involving heavy loads thanks to its rated load current of 50A. As it features overvoltage protection, you can trust this unit to protect you and your equipment in the event of a voltage surge. An aluminium baseplate provides effective heat extraction without the need for a fan. This means there are no moving parts to maintain, helping to prolong its service life. Use this SSR in applications such as food and beverage production and the railway industry.

Features & Benefits

• Flame-retardant housing for safety in the event of a fire
• MTBF of over 11 million hours at +40°C for long-lasting performance
• Pre-assembled SEMS screw and washer for quick, easy installation
• IP20 cover is finger-safe and protected against objects larger than 12mm in size

What's the advantage of this SSR's zero-voltage turn-on?

Zero-voltage turn-on eliminates possible overlap between the voltage and current to reduce switching losses in high-voltage circuits. It also helps prevent arcing and excessive heat, which could harm your device.
