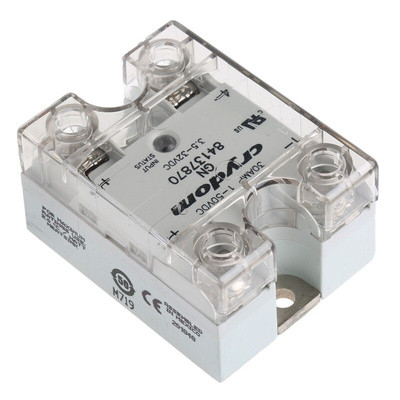

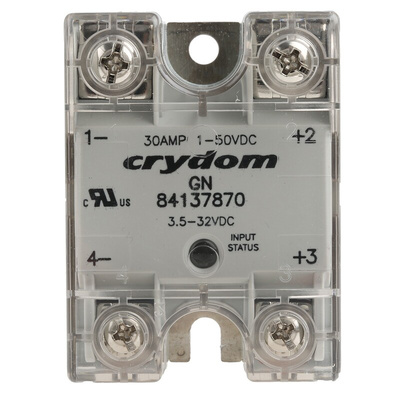

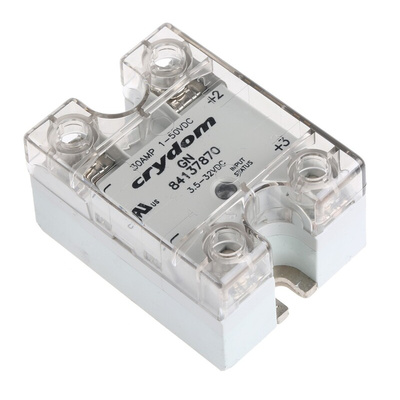

84137870, Sensata / Crydom 8413 Series Solid State Relay, 30 A dc Load, Panel Mount, 50 V dc Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, MOSFET Output, 30A Rated Load Current - GN Series - 84137870

For effective heavy-duty load switching in your industrial settings, you can count on this solid-state relay from Sensata | Crydom. As it's a voltage-controlled output device, this piece of kit needs little or no input current to control your load current, so it's an energy-saving choice. It works using the electrical and optical characteristics of semiconductors to manage the power supply, eliminating the need for mechanical parts. This saves you the hassle of wear and corrosion and assures you of a long service life. Relays like this one can be found on desktop and laptop computers.

Features & Benefits

• Aluminium baseplate for resistance to impact and corrosion
• Quick turn-on time of 75μs and turn-off time of 50μs for fast switching
• Integrated anti-rotation barriers for secure termination of conductors in vibration-prone areas
• Broad operating temperature range between -40°C and +100°C for use in extreme environments

How much load current can this SSR handle?

This unit can handle load currents from 0.1mA to 30A DC, so it's a versatile choice for both light and heavy-duty applications.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU

Datasheet - 84137870

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
