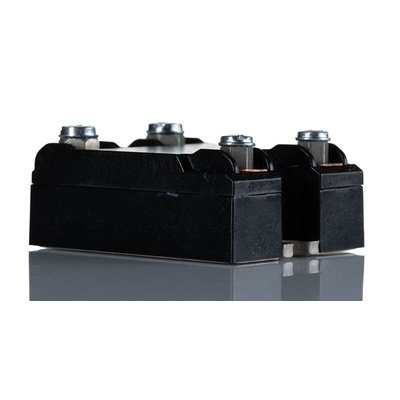

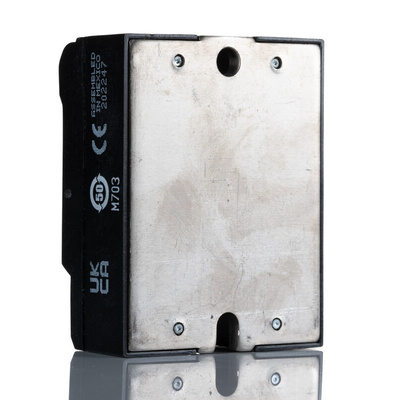

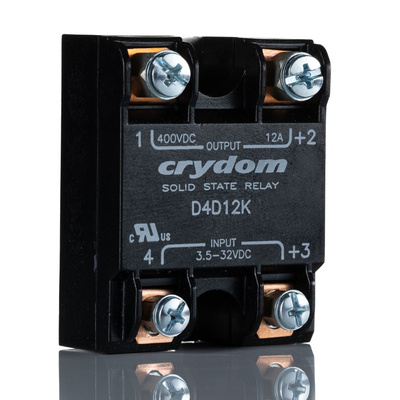

D4D12K, Sensata / Crydom 1-DC Series Solid State Relay, 12 A dc Load, Panel Mount, 400 V dc Load, 32 V dc Control, Реле

Sensata I Crydom Solid-State Relay, 1 to 400V DC Operating Voltage Range, 44.5mm Length - 1-DC Series - D4D12K

Open and close circuits swiftly by passing the baton to this solid-state relay from Sensata | Crydom. A wide operating temperature range of -40°C to +100°C means it won't break a sweat in demanding environments. A wide operating voltage range of 1 to 400V DC means it's a versatile piece of kit for use in low and high-power applications. The housing has anti-rotation barriers to keep it firmly in place, so it won't be knocked around in the event of heavy vibrations. This product is a good fit for applications such as lighting control and medical devices.

Features & Benefits

• MOSFET technology provides fast and reliable switching at high currents
• Housing is self-extinguishing for safety in the event of a fire
• MTBF of over 21 million hours at +40°C for long-lasting performance
• Light weight of 75.5g to place minimal strain on your equipment

How quickly does this relay switch on and off?

This relay has a speedy turn-on and turn-off time of just 100μs, giving you rapid-fire switching for improved efficiency.
