DRH3P60D18, Sensata / Crydom DRH Series Solid State Contactor, 3-Pole, 18 A, 120 V ac, 200 V dc, Реле

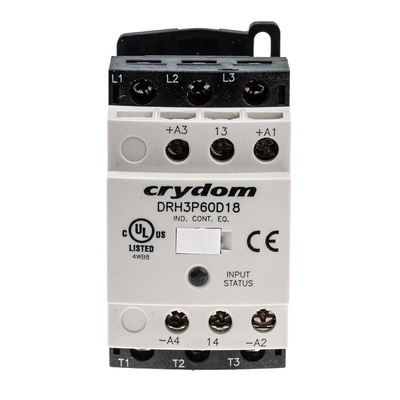

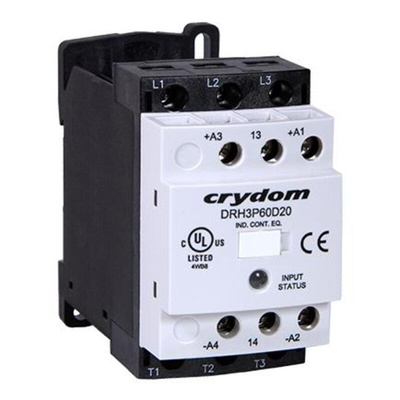

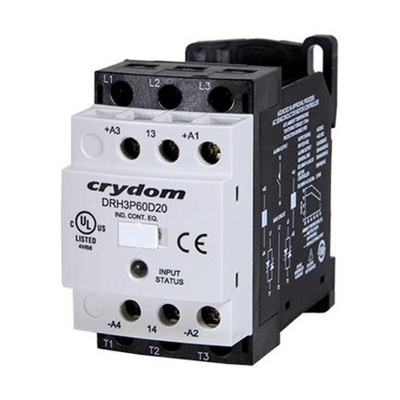

Sensata | Crydom Solid-State Contactor, 3 Poles, 18A Rated Load Current - DRH Series - DRH3P60D18

Do you need to open and close low and high-power circuits? Amp up the voltage with this solid-state contactor from Sensata | Crydom. Thanks to its wide operating voltage range of 48 to 600V AC, it's a versatile piece of kit. Integrated overtemperature protection prevents overheating, so your equipment doesn't lose its cool in demanding applications. Installation is a snap, as you can mount it directly onto a standard 35mm DIN rail. You'll find a contactor like this one used in HVAC and lighting systems.

Features & Benefits

• Multicolour LED indicator lets you check system status at a glance
• Performs reliably in harsh conditions, thanks to a wide operating temperature range of -10°C to +70°C

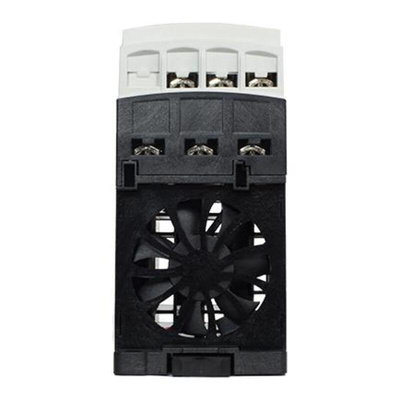

• Fan-controlled design uses a thermistor and microprocessor to increase airflow
• Zero-voltage turn-on for enhanced efficiency
• Light weight of 242g to place minimal strain on your rail

How quickly does this solid-state contactor switch on and off?

This unit has a maximum turn-on and turn-off time of one cycle, so it switches in the blink of an eye.

Solid State Contactors

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DRH3P60D18

Line Drawing - DRH3P60D18
