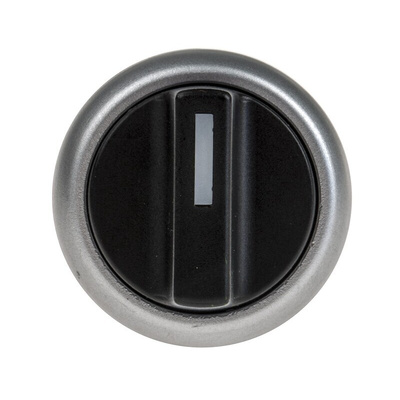

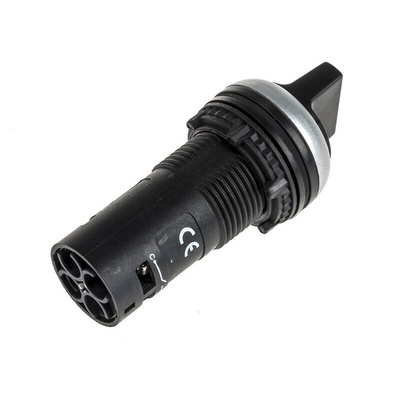

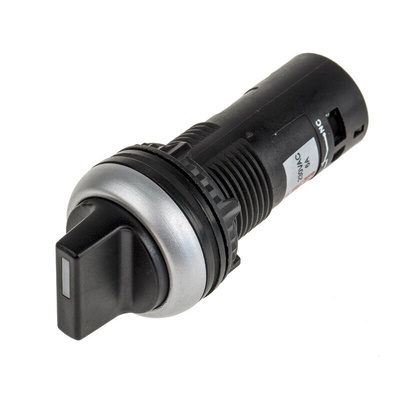

RS PRO Selector Switch - (1 CO) 22mm Cutout Diameter 2 Positions

RS PRO 2 Position Selector Switch – (1RT) 22 mm Cutout Diameter

This RS PRO selector switch is a versatile two-position switch supplied in a complete contact block. It incorporates one SPNO (Single Pole Normally Open) and one SPNC (Single Pole Normally Closed) relay output type. You can see switches like this one used in a variety of applications in the automotive and construction industries.
The switch has a built-in contact block and features a chrome collar for added protection. The product has an Ingress Protection (IP) rating of IP65, which means it's protected from dust and low-pressure jets of water.
It's a panel mounting and screw terminal type of selector switch so you can easily connect it and mount it to your panel. It complies with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements to ensure the hazard of a discharge is minimised.

Features and Benefits

• Contact configuration of 1RT
• Cutout diameter of 22 mm
• Not illuminated
• IP (Ingress Protection) rating of IP65
• Maximum voltage of 230 V AC
• Maximum current of 6 A
• Two keys
• Two positions
• Stay put switch actuation
• Screw terminal type

RS PRO Datasheet

Datasheet

RS PRO Control & Signalling Guide
