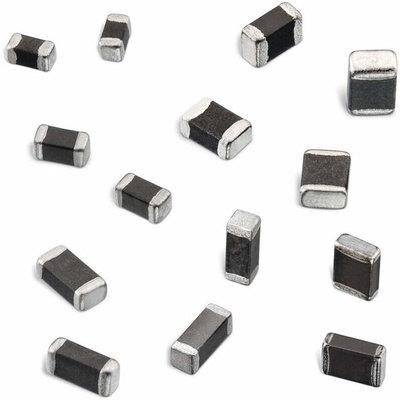

High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
The Wurth Elektronik WE-CBF is a SMT mount, EMI suppression ferrite bead with 91Ω maximum impedance. It is ideal for data line filter and uncoupling of distribution voltage.
Reliable Ni-Sn electrodes
High rated current up to 10 A
AEC-Q200 qualified
Operating temperature: –55°C to +125°C
