RS PRO Black Cabinet Lock, 28.5mm Panel-to-Tongue, 22.2 x 20.2mm Cutout, Key Unlock, Замок

RS PRO Panel to Tongue Depth 28.5 mm Black Cabinet Lock, Key to Unlock

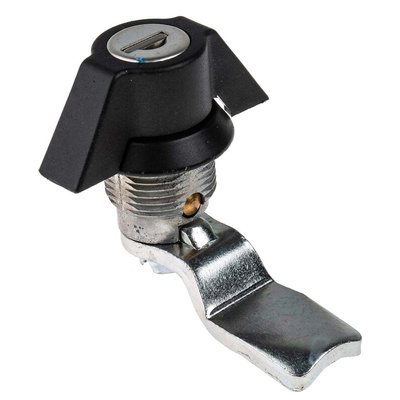

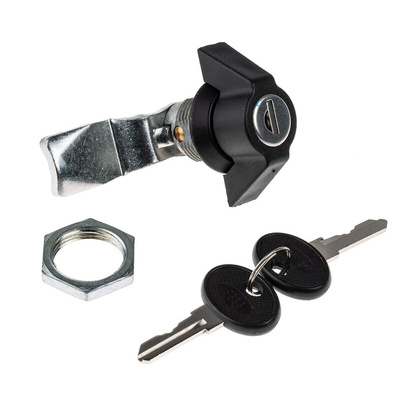

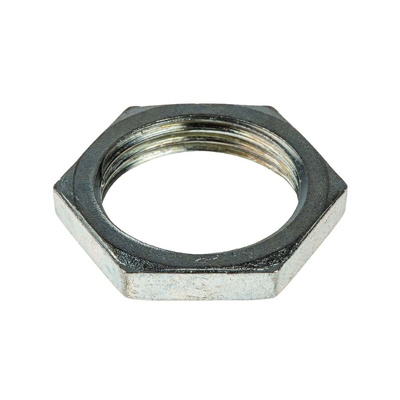

This quarter-turn key latch from the RS PRO range is supplied with two standard Euro keys. It can be used to lock cabinets. The cabinet lock is formed from die-cast zinc for corrosion resistance, while the wing knob is over-moulded with black polyamide for insulation and comfortable hand turning. It's designed for a 28.5 mm grip and is supplied with a rubber gasket for a better seal, as well as a fixing nut.

As part of the reliable RS PRO range, the latch has been stringently tested by engineers to ensure its safety and reliability. It conforms to the American National Standards Institute's Electrostatic Discharge Association (ANSI/ESD S20.20:2014) standard, and British Standard European Norm (BS EN 61340-5-1:2007) electrostatic discharge standards.

It's also RoHS compliant, meaning it contains only minimal levels of hazardous substances. This kind of key lock is typically used for securing electrical and industrial cabinets.

Features and Benefits

• Cabinet lock

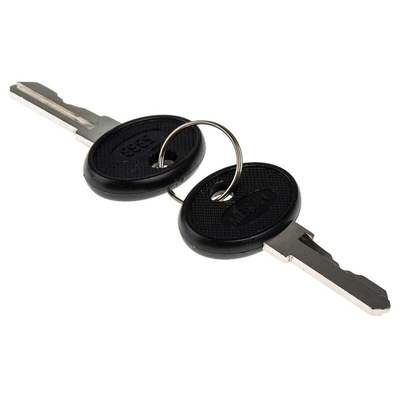

• Uses key to unlock: supplied with two standard Euro keys
• Die-cast zinc alloy
• Wing knob over-moulded with black polyamide
• Panel to tongue depth of 28.5 mm
• Panel cut-out of 22.2 mm (L) x 20.2 mm (W)
• Black colour
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
