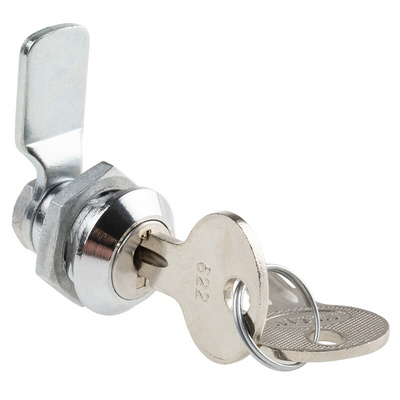

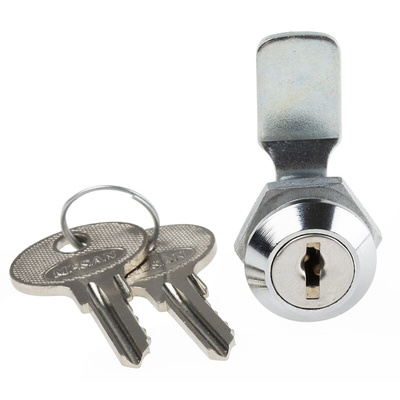

RS PRO Chrome Zinc Cabinet Lock, 16mm Panel-to-Tongue, 16.2 x 14.2mm Cutout, Key Unlock, Замок

RS PRO Panel to Tongue Depth 16 mm, Chrome Cabinet Lock, Key to Unlock

Keep important items safe with the RS PRO chrome cabinet lock. You'll find it in commercial and industrial environments, from veterinary clinics to manufacturing plants and retail units.
The cam lock is plated with chrome, so it resists corrosion and withstands outdoor use. It's made of strong die-cast zinc alloy, which means it's able to resist hard pulls without breaking.

The lock is easy to fix into place thanks to the nut supplied with this kit. With a compact panel cut out of 16.2 mm (L) and 14.2 mm (W), this cabinet lock works well for areas where space is limited. The lock itself has a panel to tongue depth of 16 mm, so it's ideal for thinner doors, including those generally used on electrical enclosures and filing cabinets.

Features and Benefits

• Chrome Plated


• Panel Cut Out: 16.2 x 14.2 mm


• Panel to tongue depth of 16 mm


• Unlocking method: Key

Specification

• Die-cast Zinc alloy


• Chrome Plated


• Supplied with 2 Euro Keys (5333)


• Fixed with nut

The RS PRO Cabinet Lock and Key to Unlock is made for industrial and commercial settings, from leisure centres to offices and laboratories. The part is made of die-cast zinc alloy, so it's durable and able to survive daily knocks and scrapes. It's plated with chrome too, which ensures it won't rust or tarnish in damp environments. It's also quick to install.
