Fluke T6-1000, LCD Voltage tester, 1000V, Battery Powered, CAT III 1000V UKAS

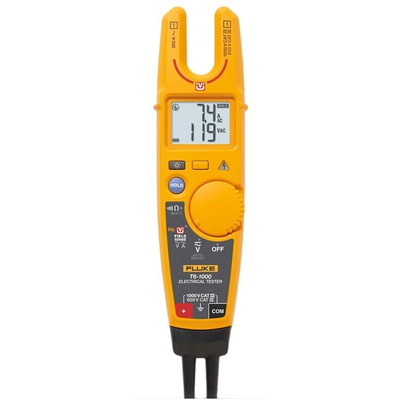

Fluke T6-1000 Electrical Tester

Using FieldSense Technology the T6-1000 measures voltage up to 1000 V ac through the open fork, without test lead contact to live voltage.+ Without opening covers or removing wire nuts. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A. Making measurement Safer. Faster. Easier.
Fluke T6 test equipment lets you check voltage, continuity and current with one compact tool. With the T6, all you have to do is select volts, ohms or current and the tester does the rest. OpenJaw™ current lets you check current up to 200 A without breaking the circuit. Its tough test leads stow neatly in the back of the tester.

Features and Benefits

• FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage+
• Simultaneous voltage and current display shows all power supply measurements at a glance for efficient trouble shooting for motors and other appliances
• 1 to 1000 V ac or dc
• 0.1 to 200 A ac
• Resistance (1 Ω to 100 kΩ )
• Frequency measurement 45 Hz to 66 Hz
• Works with most wire up to AWG 4/0 (17.8 mm jaw opening)
• HOLD button temporarily freezes the reading for easy viewing
• Easy to read display with backlight
• Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
• Standard two-year warranty

Supplied with

Attached test leads with removable 4 mm probe caps and user documentation

Optional accessories:
FLUKE T6 Holster with belt loop for T6-600 / T6-1000 1462608

Frequently asked questions and answers:

Why use the T6-100 Electrical Tester?

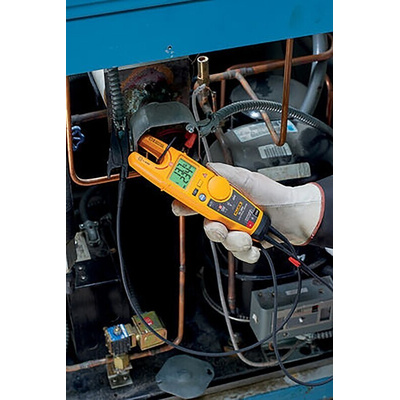

Electricians often work in boxes jammed with wires where finding a safe metallic contact point can be a challenge. With the T6-1000 you take measurements by sliding a single wire into the open fork.

Does this come with a calibration certificate?

Calibration is an additional service that we provide to customers. Calibrated products have an appropriate information shown within the product specification section at the bottom of the page. For more information please contact our Customer Service Centre.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Note

Do not hold or touch wire you are testing during a measurement. Use the black probe to make the ground connection if:
• wearing gloves or insulated footwear
• standing on an insulated ladder
• additional ground contact is required for the application

How to use Fluke T6

What is Fluke FieldSense

Datasheet T6-1000 Electrical Tester
