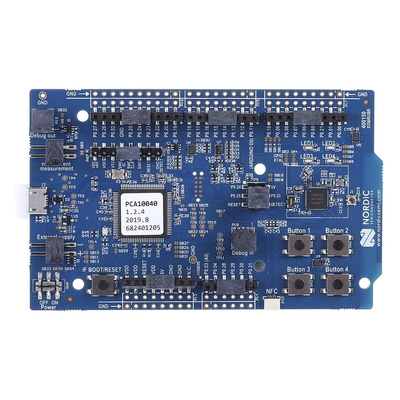

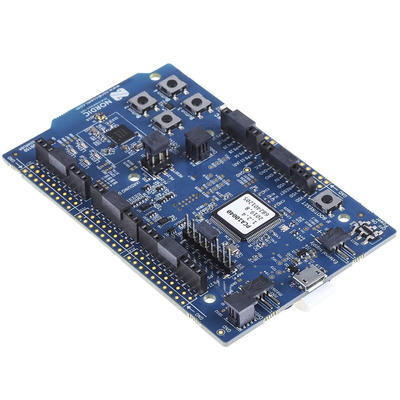

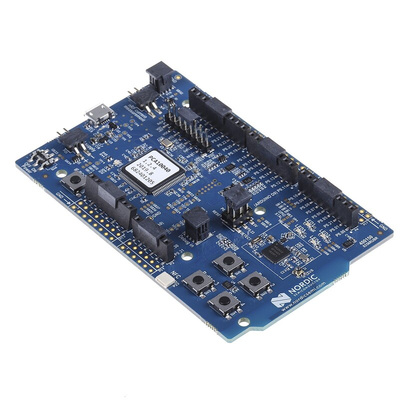

Nordic Semiconductor nRF52810, nRF52832 Bluetooth Development Kit for nRF52832 & nRF52810 SoC 2.4GHz nRF52-DK

Nordic Semiconductor Bluetooth Development Kit

The Nordic Semiconductor Bluetooth Development Kit facilitates development exploiting all features of the nRF52810 and the nRF52832 SoCs. It includes an NFC antenna that quickly enables utilization of the NFC-A tag peripheral on the nRF52832. The kit gives access to all I/Os and interfaces via edge connectors and has 4 LEDs and 4 user-programmable buttons. The kit is compatible with the Arduino Uno Revision 3 standard, making it possible to use 3rd-party shields that are compatible with this standard. It comes with an on-board SEGGER J-Link debugger allowing programming and debugging both the onboard SoC and external SoCs through the debug out the header. It can be powered by USB or by an external source, but also includes a CR2032 battery holder, enabling in-field testing of prototypes.

Features and Benefits

Affordable, rapid prototyping and development solution for the nRF52810 and nRF52832 SoCs
All I/Os and interfaces are available via connectors
Arduino Uno Rev. 3 compatible for use with 3rd party shields
Coin-cell battery holder
Connector for external NFC antenna
Connector for RF measurements
Integrated 2.4 GHz PCB antenna
NFC antenna
Pins for power consumption measurements
Segger J-Link OB programming/debugging supported
Support for programming/debugging of external boards
Supports Bluetooth LE, Bluetooth mesh, ANT and 2.4 GHz proprietary development
Voltage of 1.7V and 3.6 V supplied from the battery, USB or external

Applications

A4WP wireless charging
Appcessories
Beacons
Desktop peripherals
Industrial sensors
Internet of Things (IoT)
Lighting
Remote controls
Smarthome sensors
Smartwatch
Sports & medical
Toys
Wearables

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
