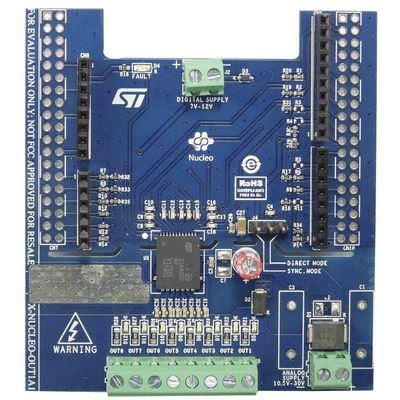

The X-NUCLEO-OUT01A1 is an Industrial Digital output expansion board based on ISO8200BQ for STM32 Nucleo boards.It provides an affordable and easy-to-use solution involving galvanic insulation embedded in industrial power switch driver applications. The Arduino™ UNO R3 connector compatibility allows to connect the following STM32 Nucleo development boards: NUCLEO-F103RB, NUCLEO-F302R8 and NUCLEO-F401RE.
Enables industrial programmable logic controller (PLC) capabilities on STM32 Nucleo
ISO8200BQ galvanic isolated octal high-side smart power solid state-relay
Operating voltage from 10.5 V to 33 V
Maximum operating output current per channel IOUT = 700 mA
Status LEDs: Fault, Thermal protection
Compatible with Arduino® UNO R3 connector
Compliance with EMC standards:
IEC61000-4-2: 8kV Contact Discharge and 15kV Air discharge
IEC61000-4-3: 4kV Discharge on output and supply line
IEC61000-4-5: 2kV Discharge on output and supply line
Compatible with STM32 Nucleo boards
RoHS compliant
