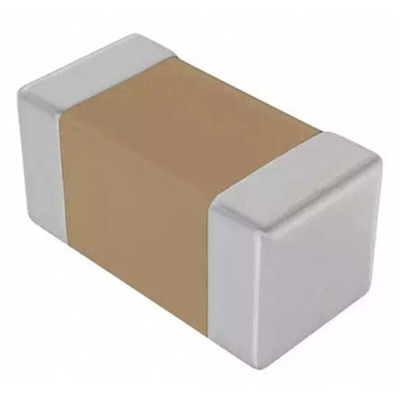

C0603C622J5GACTU, KEMET 6.2nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±5% , SMD, Конденсатор

KEMET’s C0G dielectric features a 125°C maximum operating temperature and is considered “stable.” The Electronics Components, Assemblies & Materials Association (EIA) characterizes C0G dielectric as a Class I material.Components of this classification are temperature compensating and are suited for resonant circuit applications orthose where Q and stability of capacitance characteristics arerequired. C0G exhibits n change in capacitance with respect to time and voltage aboasts a negligible change in capacitance with reference ambient temperature. Capacitance change is limited to ±30 ppm/ºC from −55°C to+125°C.

−55°Cto +125°C\toperating temperature\trange
Lead (Pb)-free, RoHS, and REACH compliant
EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825,
2220, and 2225 case sizes
DC voltage ratings of 10V, 16V, 25V, 50\tV,100V,200V,and\t
250 V
Capacitance offerings ranging from 0.5pF upto\t0.47μF\t
Available capacitance tolerances of ±0.10 pF, ±0.25pF,\t
±0.5pF,±1%,±2%,\t±5%,±10%,and±20%\t\t
No piezoelectric noise
Extremely low ESR and ESL
High thermal stability
High ripple current capability

Specification sheet

Datasheet
