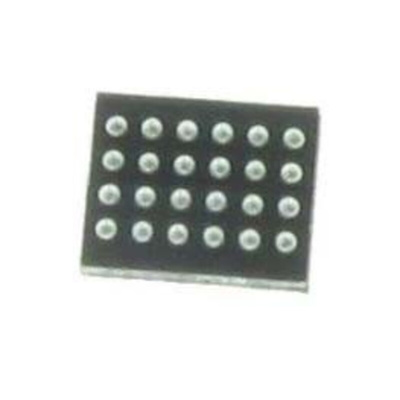

FPF2895UCX, onsemi FPF2895UC, 1Low Side, Low Side Power Switch IC 24-Pin, WLCSP

The FPF2895 features a 28 V and 5 A rated current limit power switch, which offers Over-Current Protection (OCP), Over-Voltage Protection (OVP), and True Reverse Current Block (TRCB) to protect system. It has low On-resistance of typical 27 mΩ with WL-CSP can operate over an input voltage range of 4 V to 22 V.The FPF2895 supports ±10% of current limit accuracy, over-current range of 500 mA to 5 A, flexible operations such as selectable OVP, selectable ON polarity and selectable OCP behavior, which can be optimized according to system requirements.

28 V / 5 A Capability
Wide Input Voltage Range: 4 V ∼ 22 V
Selectable ON Polarity
Selectable Over-Current Behavior
Auto-Restart Mode
True Reverse Current Block
Current Source Mode
Thermal Shutdown
