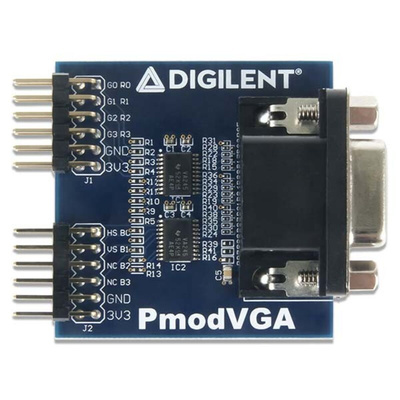

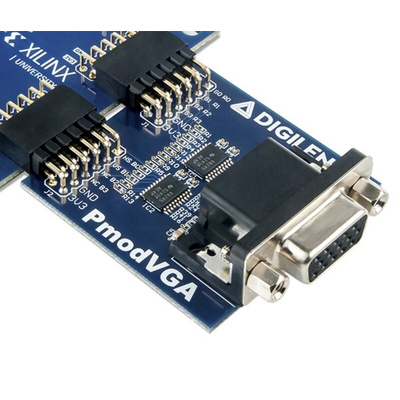

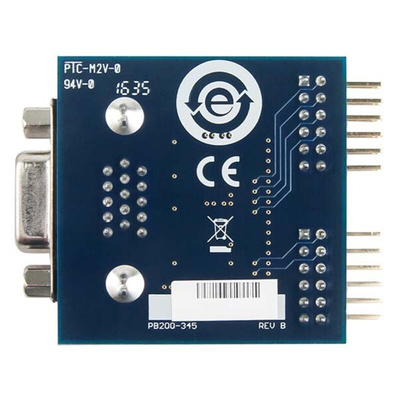

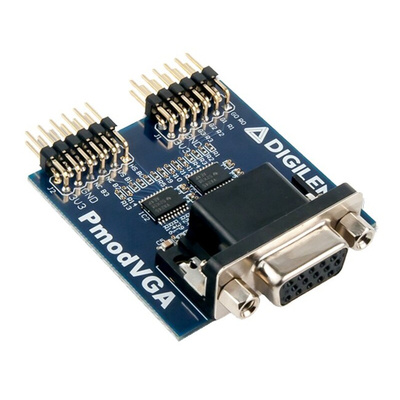

Digilent Pmod VGA Development Kit 410-345

The Pmod VGA provides a VGA port to any board with Pmod connectivity. The VGA port can be used to drive standard displays such as televisions and monitors. The host board must be capable of driving a fast parallel data bus in order to properly drive a display with the Pmod VGA.

Standard VGA port for connecting commonly found displays
12-bit RGB444 colour depth
Simple, high-speed R-2R resistor ladder DAC
High-speed buffers support pixel clocks up to 150 MHZ
Small PCB size for flexible designs 1.7“ x 1.7” (4.3 cm x 4.3 cm)
Dual 12-pin Pmod connector with GPIO interface
Follows Digilent Pmod Interface Specification
