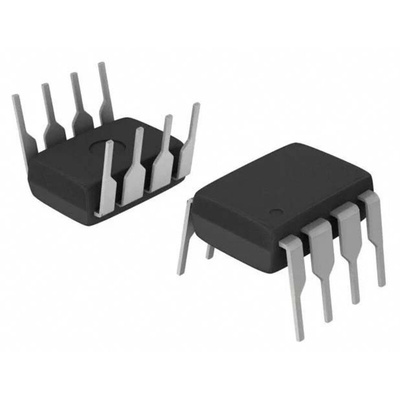

Power Integrations DPA425PN, 1-Channel, Flyback, Forward DC-DC Converter 8-Pin, DIPB, Преобразователь

1465741
Номер производителя: DPA425PNПроизводитель: Power Integrations
Цена за шт. (норма упаковки 50 шт)
1128.00 руб. (С НДС) *
Количество 50+
Цена 1128.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DPA-Switch, Power Integrations

The DPA-Switch Family combines a 220 V power MOSFET with a controller that provides current monitoring, undervoltage and ovetemperature protection, soft start and other control functions in a single device, saving up to 30 external components in the power supply design. Combining the key switching elements into a single package reduces design complexity and ensures rapid, low-risk development of highly cost-effective power supplies.

Supports flyback and forward topology
Programmable internal current sense eliminates external sense components
Built-in auto-restart for output overload/open loop protection
EcoSmart® Energy Efficiency, extremely low consumption at no-load

The DPA-Switch IC is a highly integrated solution for DC-DC conversion applications with 16-75 VDC input. High performance features are enabled with three user configurable pins. Hysteretic thermal shutdown is also provided. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tight temperature and absolute tolerance, to simplify design.

Lossless integrated current limit
Built-in auto-restart
Input UV/OV shutdown protection
Pin selectable 300/400 kHz
DC-DC converter module "bricks"
PoE Powered Devices
Servers, routers & network line cards
Telecom central office equipment
VoIP & digital feature phones
Temperature & industrial controls

AC-DC Converters, Power Integrations

Техническая спецификация
pdfDatasheet
pdfESD Control Selection Guide V1
Высота:
3.68мм
Длина:
9.83мм
Количество выходов:
1
Количество контактов:
8
Максимальная частота переключений:
425 кГц
Максимальное входное напряжение:
75 В пост. тока
Минимальное входное напряжение:
36 В пост. тока
Рабочая температура - максимальная:
+150 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
9.83 x 6.6 x 3.68мм
Тип выхода:
Фиксированный
Тип монтажа:
Сквозное отверстие
Тип преобразователя:
Flyback, Forward
Тип упаковки:
DIPB
Ширина:
6.6мм
