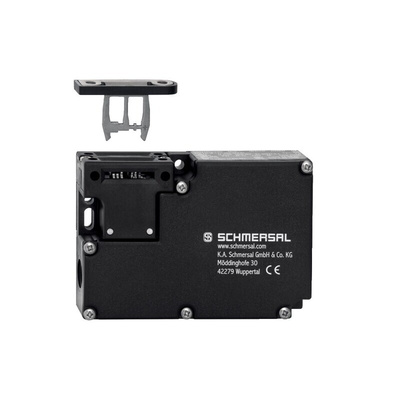

AZM161SK-12/12RI-024-B1, Schmersal AZM 161 Series Solenoid Interlock Switch, Power to Unlock, 24V ac/dc, Actuator Included

Schmersal Solenoid Interlock Switch, 24V AC/DC, 2NO - AZM 161 Series - AZM161SK-12/12RI-024-B1

Ensure high levels of workplace safety with this solenoid interlock switch from Schmersal. It prevents operators from accessing hazardous machinery or areas by ensuring machine guards and gates remain closed until conditions are safe. The unit is magnetically coded for a wide sensing range and enhanced resistance to tampering. Its screw terminals hold electrical connections firmly in place without causing damage to wires, keeping maintenance to a minimum. For improved safety and reliability, this device is prevented from locking incorrectly.

Features & Benefits

• Double-insulated enclosure that eliminates the risk of electrical shock to operators
• Glass fibre-reinforced thermoplastic housing for durability and heat resistance
• IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for 30 minutes
• Meets IEC/EN60947-5-1 (International Electrotechnical Commission/European Norm) safety requirements for low-voltage switchgear

Applications

• Pharmaceutical industry
• Hospitals and medical centres
• Mining and mineral processing

How large is this solenoid interlock switch?

This switch has compact dimensions of 130 (length) x 90 (width) x 30mm (depth), making it a good choice for installation in areas where space is limited.

What temperatures can this switch operate in?

This switch has a wide operating temperature range of -30°C to +60°C, making it suitable for use in a broad range of environments.
