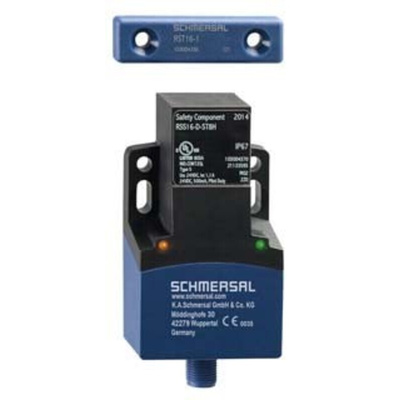

RSS16-I2-D-ST8H, Schmersal RSS16 Series RFID Non-Contact Safety Switch, 26.4V dc, Reinforced Thermoplastic Housing, M12, Выключатель

Schmersal RFID Non-Contact Safety Switch, 20.4 to 26.4V DC Supply Voltage, 100ms Reaction Time - RSS16 Series - RSS16-I2-D-ST8H

Protect personnel from hazardous machinery with this non-contact safety switch from Schmersal. It prevents workplace accidents by activating a shutdown when machine guards, doors or other barriers are open. The switch features RFID coding, so it only works with a properly coded actuator for a high level of protection against tampering. A fast reaction time of 100ms means the switch responds quickly to problems for enhanced safety. Thanks to its compact dimensions of 91 (length) x 52 (width) x 30mm (height), it's suitable for use in areas where space is limited.

Features & Benefits

• Glass fibre-reinforced thermoplastic enclosure is resistant to heat and impact for durability
• Broad operating temperature range between -25°C and +70°C for use in demanding environments
• Light weight of 275g to place minimal strain on your equipment
• Operating voltage range of 20.4 to 26.4V DC for use in low-power applications

Applications

• Food production
• Pharmaceutical manufacturing
• Petrochemical industry

How can I monitor the status of this switch?

This switch has two LEDs that clearly display the switch's operating condition, making it easy to monitor.

Datasheet - RSS16-I2-D-ST8H

Datasheet - RSS16-I2-D-ST8H

Instruction Sheet - Series RSS16

Catalogue - Electronic Safety Sensors and Solenoid Interlocks
