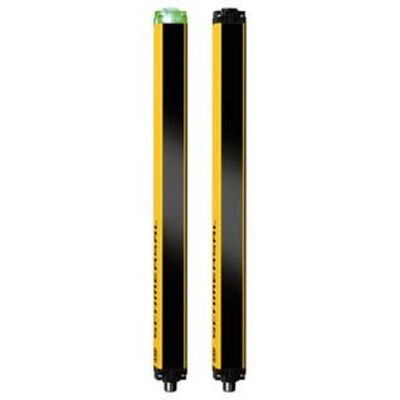

SLC440COM-E-0490-14, Schmersal SLC440COM Series SLC440COM Light Curtain Sender, 48 Beam(s), 14mm Resolution, Световые завесы

Schmersal Light Curtain Sender, 24V DC Operating Voltage, 14mm Beam Resolution - SLC440COM Series - SLC440COM-E-0490-14

Protect personnel from injury and prevent damage to your machinery with this light curtain sender from Schmersal. It sends 48 beams of infrared light to a receiver and signals machines to stop if an object interrupts the beams. Thanks to its large protection field range of 300 to 7000mm, it covers a large area for maximum safety. A rapid response time of just 10ms means it will quickly intervene to minimise risk.

Features & Benefits

• Long cable length of 100m for a flexible connection in large areas
• Wide operating temperature range of -10°C to +50°C for use in demanding industrial environments
• Compact dimensions of 33 (length) x 27.8 (width) x 531mm (height) to take up minimal space

Applications

• Robots
• Pallet loaders
• Automated processing plants

Is this light curtain sender suitable for use in damp environments?

Yes, this component has an IP67 rating, which means it's dustproof and protected against immersion in 1m of water for up to 30 minutes. This makes it safe to use in moist areas.
