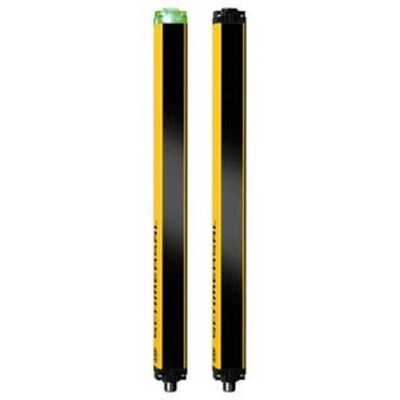

SLC440COM-E-0810-14, Schmersal SLC440COM Series 440COM Light Curtain Sender, 80 Beam(s), 14mm Resolution, Световые завесы

Schmersal Light Curtain, Sender, 300 to 7000mm Scanning Distance - SLC440COM Series - SLC440COM-E-0810-14

Use this light curtain sender from Schmersal to increase the safety of your machinery. It transmits 80 light beams to a receiver and shuts down equipment when the beams are interrupted by an object, helping to prevent injury. A maximum response time of 20ms helps automated systems to stop quickly. The broad scanning distance range between 300 and 7000mm makes it suitable for use in large areas. Thanks to its wide operating temperature range between -10°C and +50°C, it's a good choice for use in demanding environments.

Features & Benefits

• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Corrosion-resistant aluminium housing for durability
• Built-in system diagnostics and two fail-safe digital outputs for maximum efficiency

Applications

• Elevators and escalators
• Food industry
• Machine tools
• Packaging and processing equipment

What type of connector does this light curtain have?

This light curtain has an M12 4-pin connector, making it compatible with standard industrial cables.

How large is this light curtain sender?

The sender has compact dimensions of 33 (length) x 27.8 (width) x 851mm (height), so it will add minimal bulk to your setup.

Datasheet

Datasheet - Schmersal Optoeletronic Safety Guards

Instruction Sheet - Safety Light Curtain / Safety Light Grid

Datasheet - Series SLC440COM
