SLC440COM-E-0970-14, Schmersal SLC440COM Series 440COM Light Curtain Sender, 96 Beam(s), 14mm Resolution, Световые завесы

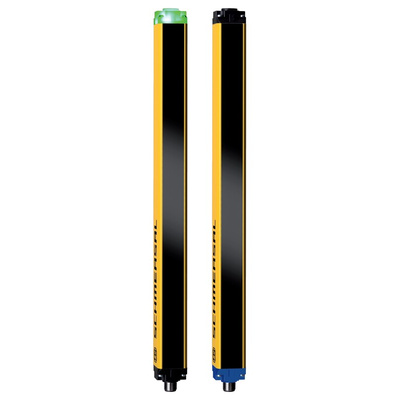

Schmersal Light Curtain, Sender, 970mm Protection Field Height - SLC440COM Series - SLC440COM-E-0970-14

Create a safety barrier for your moving machinery with this light curtain sender from Schmersal. It works with a receiver to create a light barrier and shuts down your equipment if hands or small objects interrupt its beams. A maximum reaction time of 20ms means it stops your machines quickly to help avoid accidents. The device has a broad protection field range of 300 to 7000mm for use with large machinery.

Features & Benefits

• IP67 rating means it's dust-tight and can withstand immersion in 1m of water for up to 30 minutes
• Maximum connection cable length of 100m for flexible installation
• Meets EN IEC 61496-2 safety standards for electro-sensitive protective equipment
• Wide operating temperature range of -10°C to +50°C for use in demanding environments
• Switching voltage of 24V DC for use in low-power systems

Applications

• Packaging and processing machines
• Automated warehouse systems
• Textile machinery and power presses

What's the power consumption of this light curtain sender?

This light curtain sender has a maximum power consumption of 5W, making it an energy-efficient choice.
